Tree-Based Methods

Python Setup

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

from plotnine import (
    aes,
    geom_line,
    geom_point,
    ggplot,
    labs,
    scale_x_continuous,
    theme_bw,
)
from plotnine.data import penguins
from sklearn.model_selection import KFold, cross_val_score
from sklearn.tree import DecisionTreeClassifier, DecisionTreeRegressor, plot_tree

RANDOM_STATE = 123

# Load and clean the Palmer Penguins data.
df = penguins.dropna().copy().reset_index(drop=True)

# Define the predictors and outcomes used throughout the presentation.
regression_features = [
    "flipper_length_mm",
    "bill_length_mm",
    "bill_depth_mm",
]
classification_features = [
    "body_mass_g",
    "flipper_length_mm",
    "bill_length_mm",
    "bill_depth_mm",
]

X_regression = df[regression_features]
y_regression = df["body_mass_g"]

X_classification = df[classification_features]
y_classification = df["species"]

# Reproduce the original 50% training sample for both models.
rng = np.random.default_rng(RANDOM_STATE)
train_index = np.sort(
    rng.choice(df.index, size=len(df) // 2, replace=False)
)

X_regression_train = X_regression.loc[train_index]
y_regression_train = y_regression.loc[train_index]

X_classification_train = X_classification.loc[train_index]
y_classification_train = y_classification.loc[train_index]

# Ten-fold cross-validation used in the pruning section.
cv = KFold(n_splits=10, shuffle=True, random_state=RANDOM_STATE)

Trees

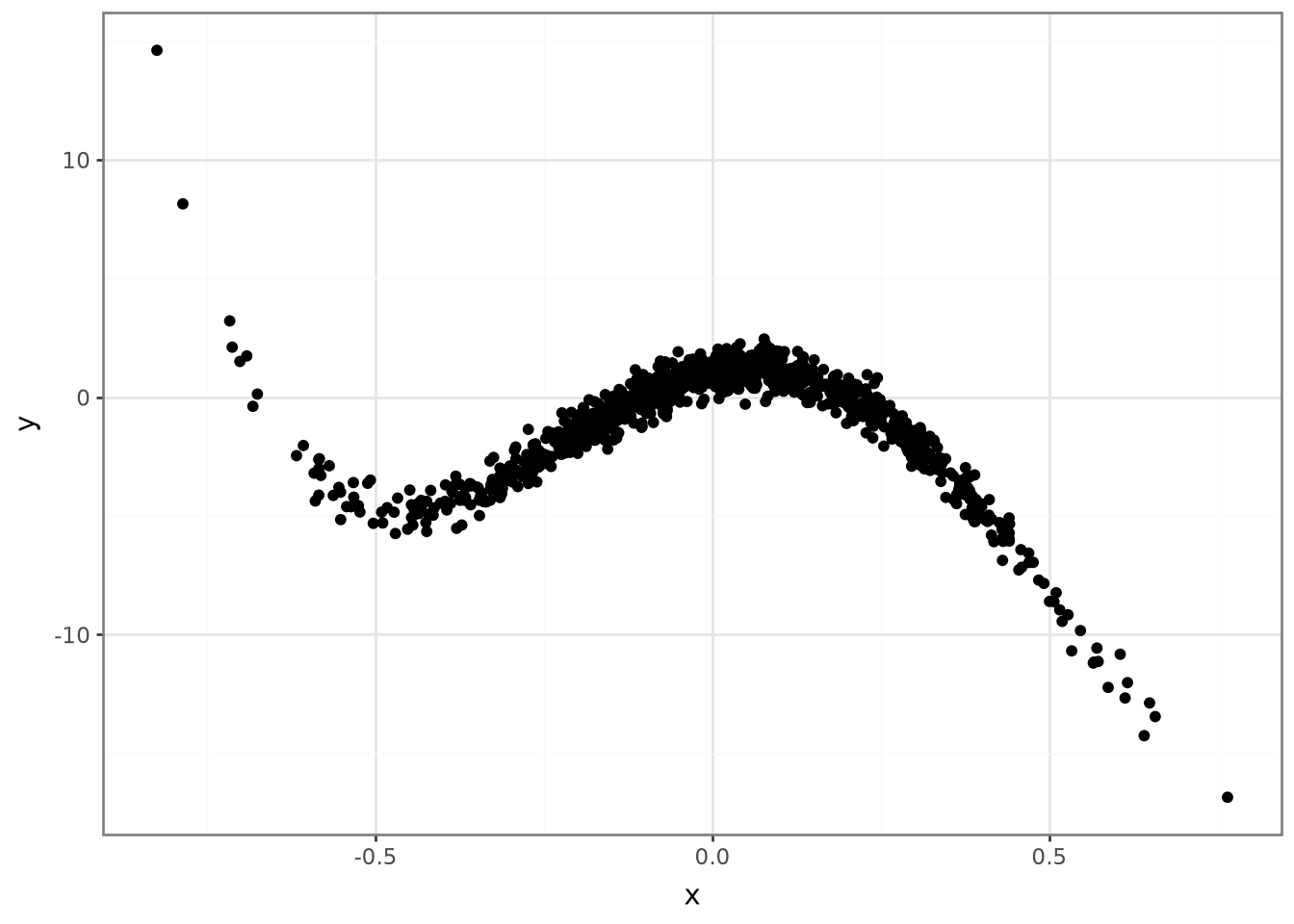

Trees

A Statistical tree will partition a region from a set of predictor variables that will predict an outcome of interest.

Trees will split a region based on a predictors ability to reduce the overall mean squared error.

Trees are sometimes preferred to linear models due to the visual explanation of the model.

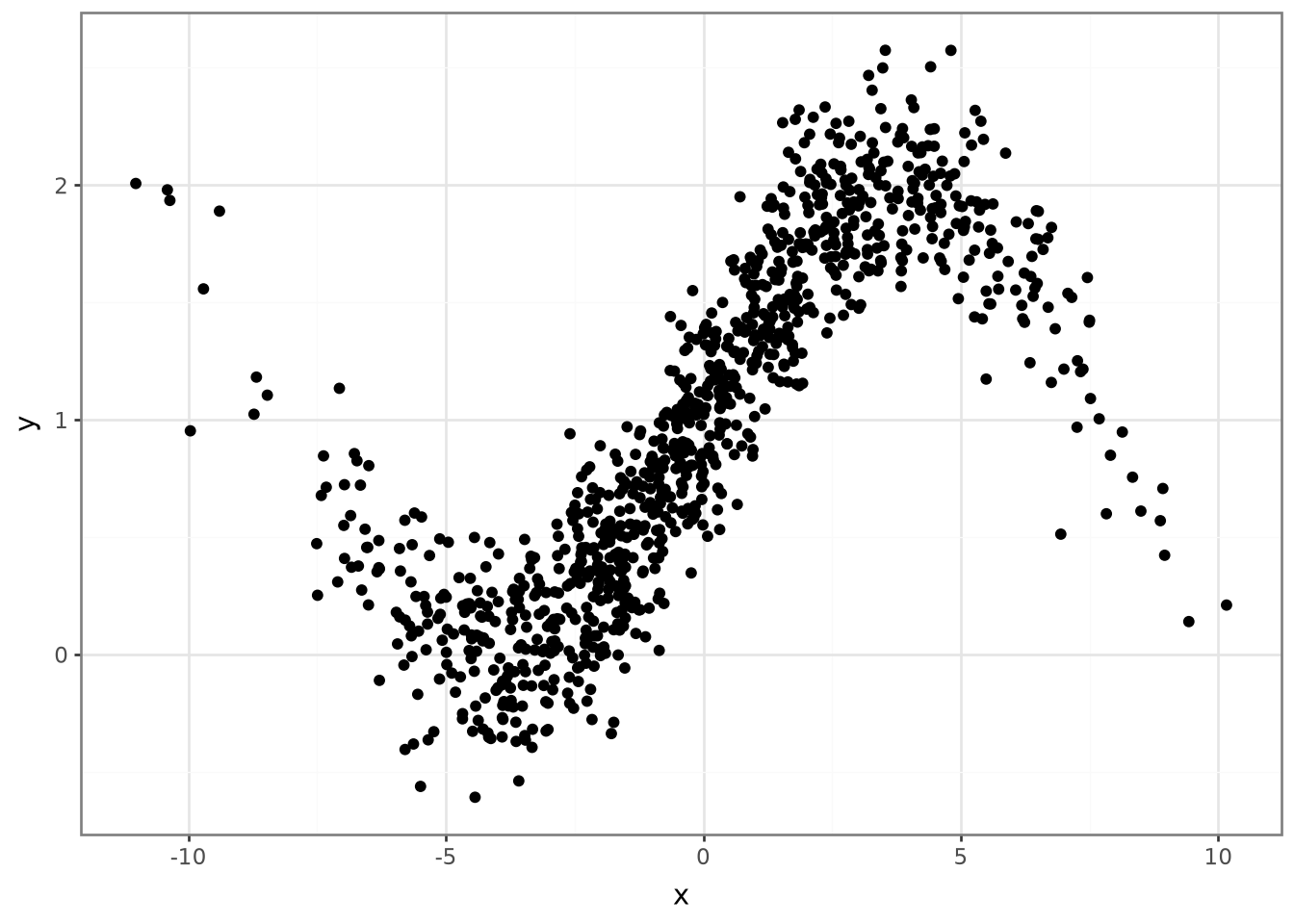

Trees

Fitting a Tree

1. Start with the entire dataset and define the maximum number of regions or number of observations per region of the tree.
2. Calculate the MSE of the dataset.
3. For each potential split, calculate the MSE. Choose the split that results in the lowest overall MSE.
4. Create a node in the tree with the selected split as the split criterion.
5. Repeat steps 2-4 for each subset, stopping if the maximum number of regions has been reached or if the subset size is too small.

Pruning

Pruning

Pruning is the process that will remove branches from a regression tree in order to prevent overfitting.

This will result in a subtree that has high predictive power with no overfitting.

Due to the computational burden of pruning, it is recommended to implement Cost Complexity Pruning.

Cost Complexity Pruning

Let \(\alpha\) be nonnegative tuning parameter that indexes a sequence of trees. Identify the tree that reduces:

\[ \sum^{|T|}_{m=1}\sum_{i:\ x_i \in R_m}(y_i-\hat y_{R_m})^2 +\alpha|T| \]

• \(|T|\): Number of terminal nodes

• \(R_m\): rectangular region containing data

• \(y_i\): observed value

• \(\hat y_{R_m}\): predicted value in rectangular region.

Pruning Algorithm

1. Conduct a fitting algorithm to find the largest tree from the training data. Stop once every region has a small number of observations.
2. Apply the cost complexity pruning algorithm to identify the best subset of trees.
3. Use a K-fold cross-validation approach to choose the proper \(\alpha\). For each kth fold:
   1. Repeat steps 1 and 2.
   2. Evaluate the mean squared prediction error as a function of \(\alpha\).
4. Average the results for each value of \(\alpha\). Pick the \(\alpha\) that minimizes the error.
5. Return the subtree with the selected \(\alpha\) from step 2

Classification Trees

Classification Trees

Classification Trees will construct a tree that will classify data based on the region (leaf) you land. The class majority is what is classified.

Criterion: Gini Index

The Gini Index is used to determine the error rate in classification trees:

\[ G = \sum^K_{k=1} \hat p_{mk}(1-\hat p_{mk}) \]

Regression Trees

Regression Trees

Regression trees will construct a tree and predict the value of the outcome based on the average value of the region (leaf).

Trees are constructed by minimizing the residual sums of square.

Python Code

Regression Trees

• Python Code
• Plot

# Approximate the R tree package's default 1% minimum-deviance rule.
minimum_deviance = 0.01 * y_regression_train.var(ddof=0)

tree_penguin = DecisionTreeRegressor(
    criterion="squared_error",
    min_samples_split=10,
    min_samples_leaf=5,
    min_impurity_decrease=minimum_deviance,
    random_state=RANDOM_STATE,
).fit(X_regression_train, y_regression_train)

plt.figure(figsize=(12, 7))
plot_tree(
    tree_penguin,
    feature_names=regression_features,
    filled=True,
    rounded=True,
    precision=0,
    fontsize=8,
)

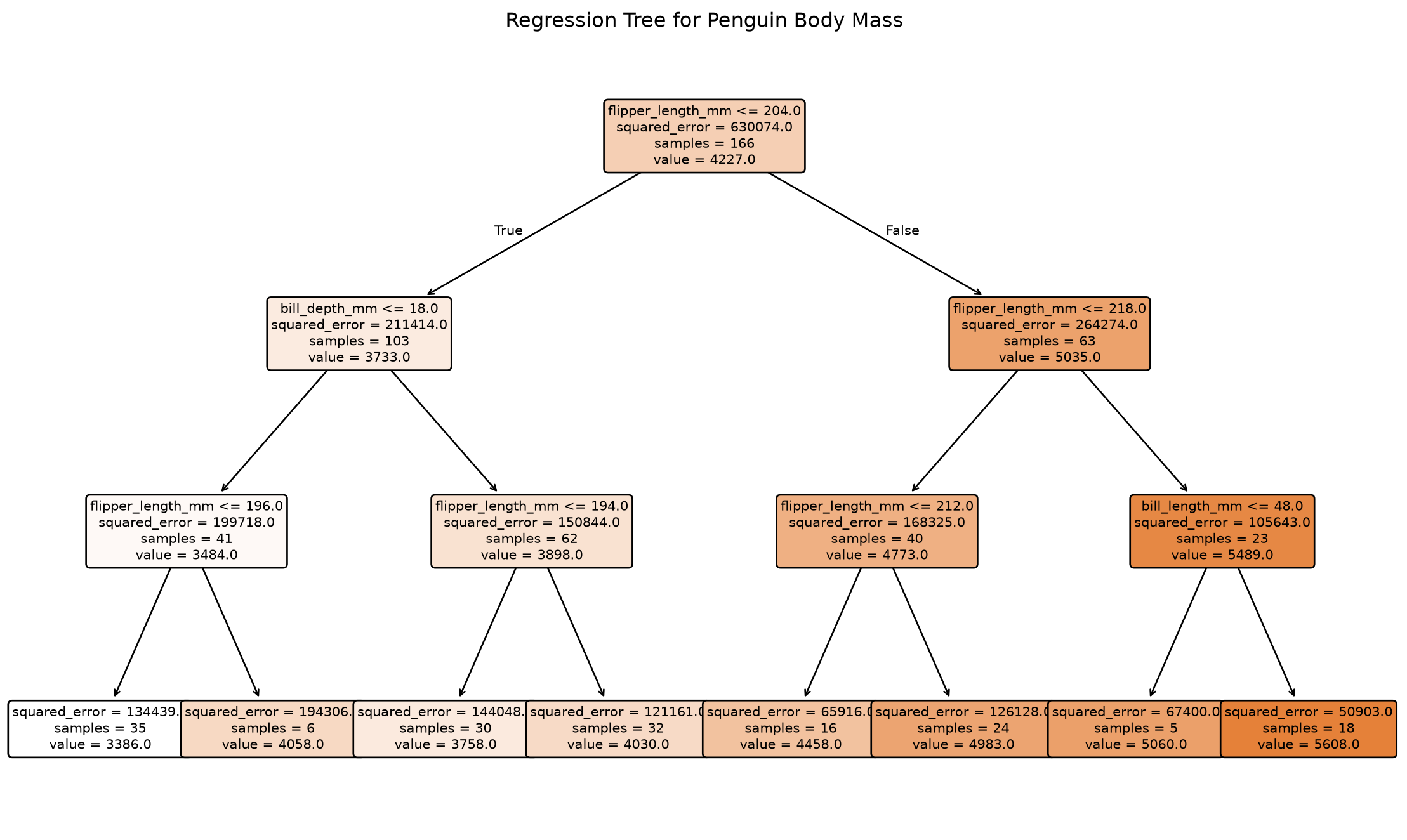

plt.title("Regression Tree for Penguin Body Mass")
plt.tight_layout()
plt.show()

Classification Trees

• Code
• Plot

tree_penguin_class = DecisionTreeClassifier(
    criterion="gini",
    min_samples_split=10,
    min_samples_leaf=5,
    random_state=RANDOM_STATE,
).fit(X_classification_train, y_classification_train)

plt.figure(figsize=(13, 7))
plot_tree(
    tree_penguin_class,
    feature_names=classification_features,
    class_names=tree_penguin_class.classes_,
    filled=True,
    rounded=True,
    precision=2,
    fontsize=8,
)

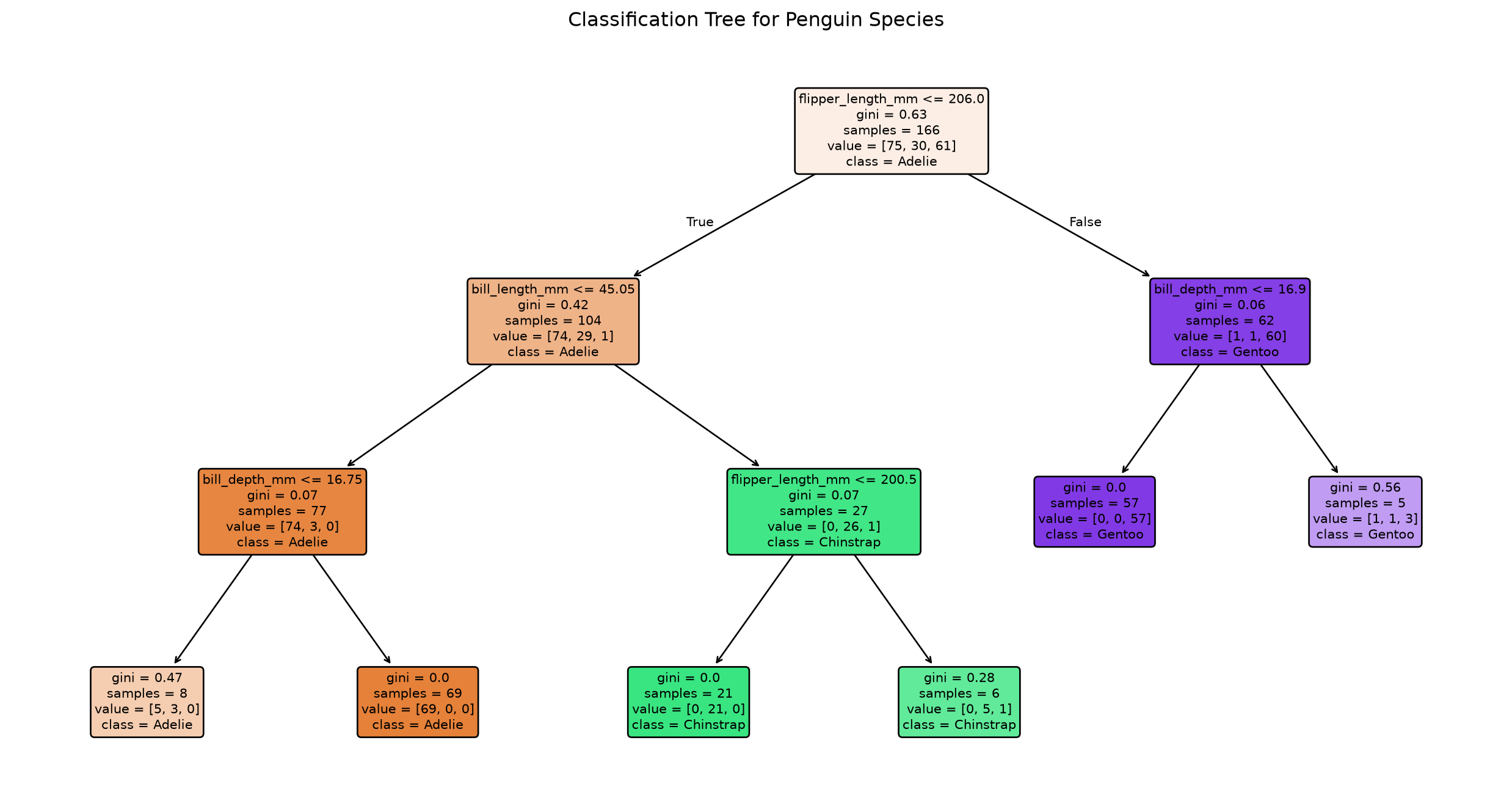

plt.title("Classification Tree for Penguin Species")
plt.tight_layout()
plt.show()

Pruning

• Code
• Summary
• Plot
• Pruning

# Generate the cost-complexity pruning sequence for the fitted tree.
pruning_path = tree_penguin.cost_complexity_pruning_path(
    X_regression_train,
    y_regression_train,
)

# The final alpha produces a tree with only the root, so it is omitted.
candidate_alphas = np.unique(pruning_path.ccp_alphas[:-1])

pruning_results = []

for alpha in candidate_alphas:
    candidate_tree = DecisionTreeRegressor(
        criterion="squared_error",
        min_samples_split=10,
        min_samples_leaf=5,
        min_impurity_decrease=minimum_deviance,
        ccp_alpha=float(alpha),
        random_state=RANDOM_STATE,
    )

    fold_mse = -cross_val_score(
        candidate_tree,
        X_regression_train,
        y_regression_train,
        cv=cv,
        scoring="neg_mean_squared_error",
    )

    candidate_tree.fit(X_regression_train, y_regression_train)

    pruning_results.append(
        {
            "ccp_alpha": float(alpha),
            "size": candidate_tree.get_n_leaves(),
            "cv_mse": fold_mse.mean(),
            "cv_mse_se": fold_mse.std(ddof=1) / np.sqrt(len(fold_mse)),
        }
    )

raw_pruning_results = pd.DataFrame(pruning_results)

# If multiple alpha values produce the same tree size, retain the one with
# the smallest cross-validated error for that size.
best_size_rows = raw_pruning_results.groupby("size")["cv_mse"].idxmin()
tree_penguin_cv = (
    raw_pruning_results.loc[best_size_rows]
    .sort_values("size")
    .reset_index(drop=True)
)

tree_penguin_cv.round(
    {
        "ccp_alpha": 2,
        "cv_mse": 2,
        "cv_mse_se": 2,
    }
)

	ccp_alpha	size	cv_mse	cv_mse_se
0	45099.51	2	231753.73	23080.31
1	25511.49	3	227697.96	23214.53
2	15971.40	4	238199.06	24518.91
3	13959.37	5	224460.39	22758.08
4	7087.55	6	200352.90	21357.88
5	6950.20	7	200352.90	21357.88
6	0.00	8	205775.74	22941.45

(

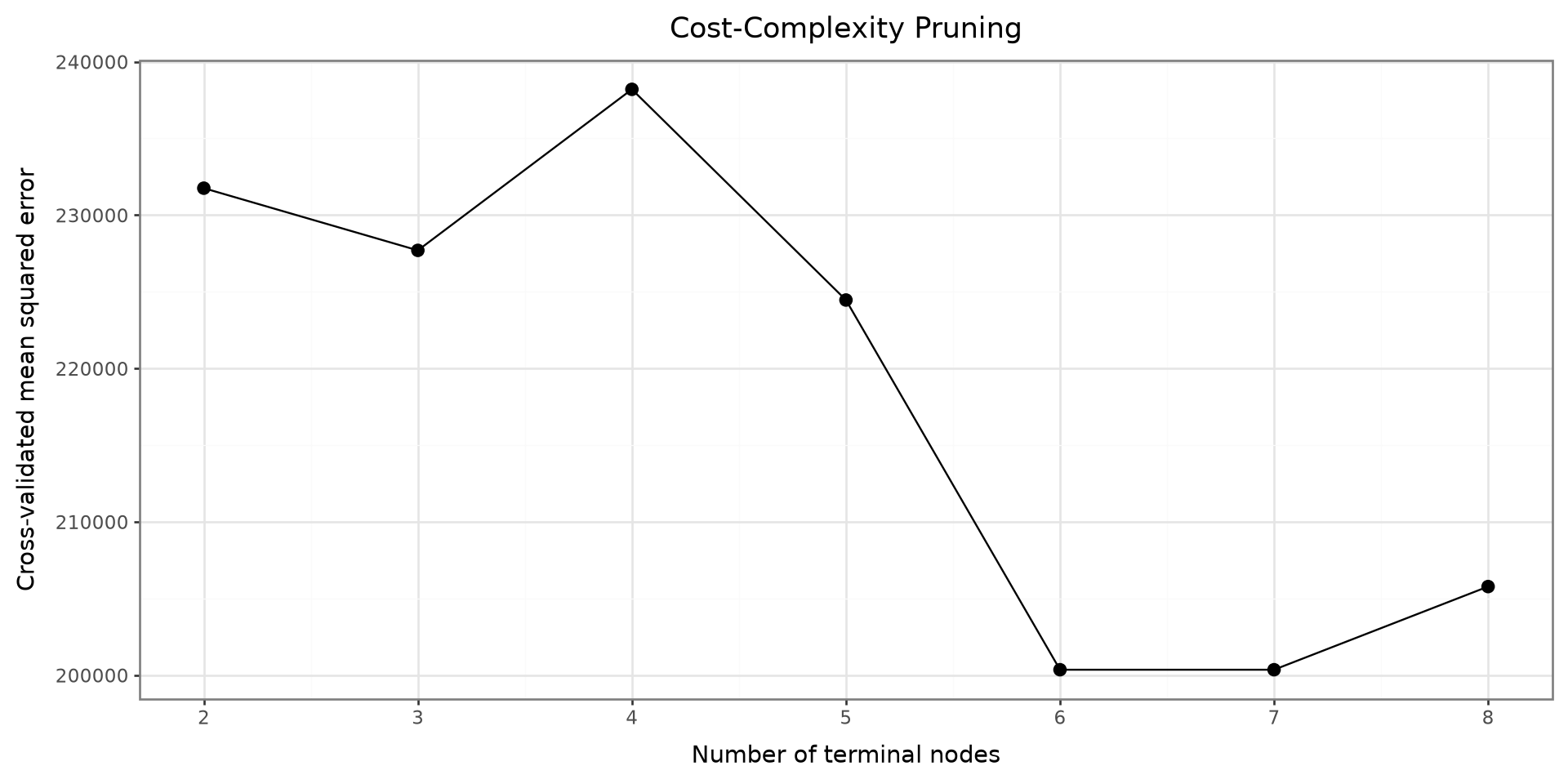

    ggplot(tree_penguin_cv, aes(x="size", y="cv_mse"))
    + geom_line()
    + geom_point(size=2.5)
    + scale_x_continuous(
        breaks=sorted(tree_penguin_cv["size"].unique())
    )
    + labs(
        x="Number of terminal nodes",
        y="Cross-validated mean squared error",
        title="Cost-Complexity Pruning",
    )
    + theme_bw()
)

# Match the original R example by selecting the alpha for a seven-leaf tree.
# In these data, the seven-leaf tree also attains the minimum CV MSE.
best_row = tree_penguin_cv.loc[tree_penguin_cv["size"].eq(7)].iloc[0]
best_alpha = float(best_row["ccp_alpha"])

prune_best = DecisionTreeRegressor(
    criterion="squared_error",
    min_samples_split=10,
    min_samples_leaf=5,
    min_impurity_decrease=minimum_deviance,
    ccp_alpha=best_alpha,
    random_state=RANDOM_STATE,
).fit(X_regression_train, y_regression_train)

plt.figure(figsize=(12, 7))
plot_tree(
    prune_best,
    feature_names=regression_features,
    filled=True,
    rounded=True,
    precision=0,
    fontsize=8,
)

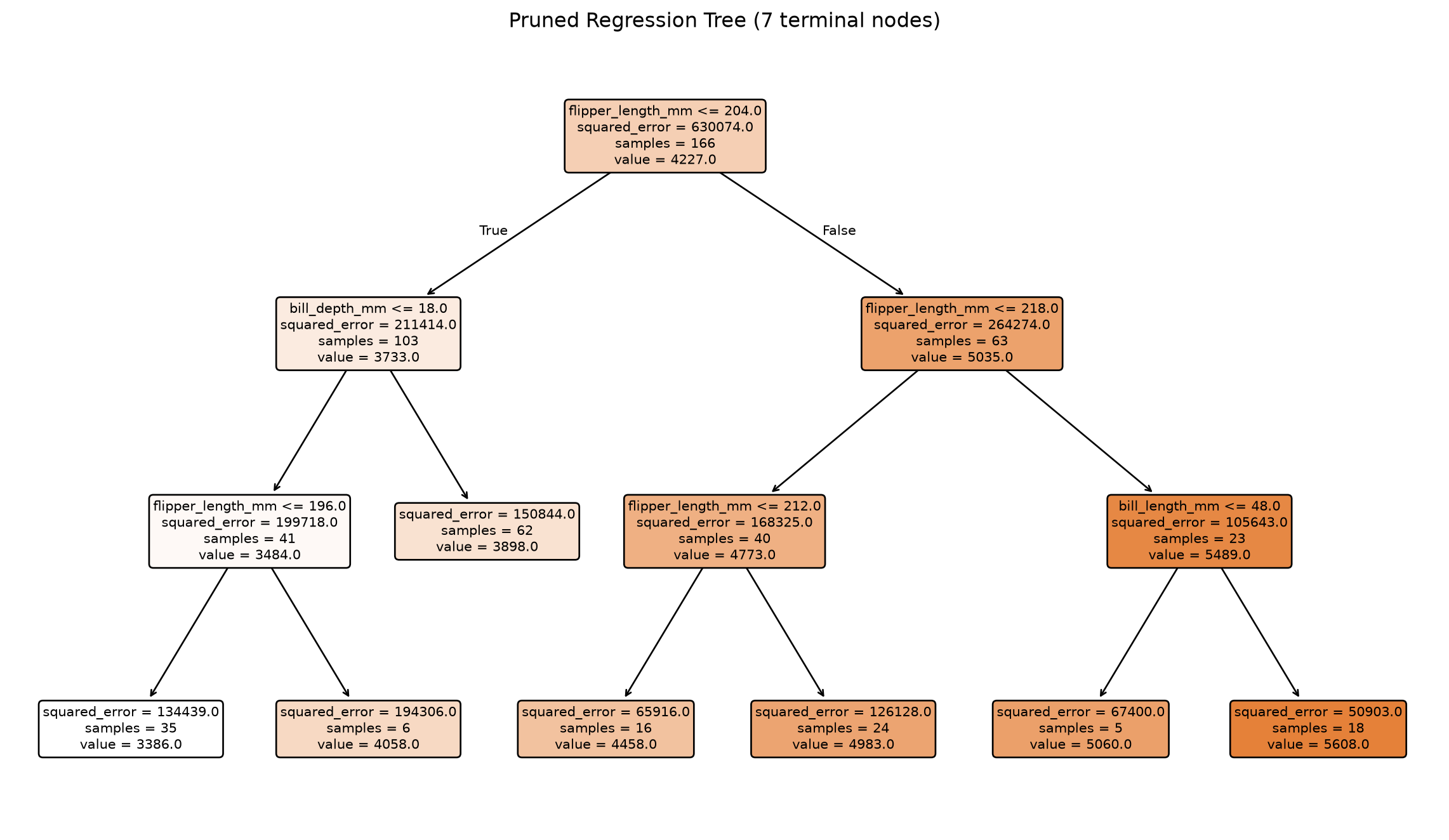

plt.title(
    f"Pruned Regression Tree ({prune_best.get_n_leaves()} terminal nodes)"
)
plt.tight_layout()
plt.show()
