Learning Outcomes

• Maximal Margin Classifier
• Support Vector Classifier
• Python Code

Maximal Margin Classifier

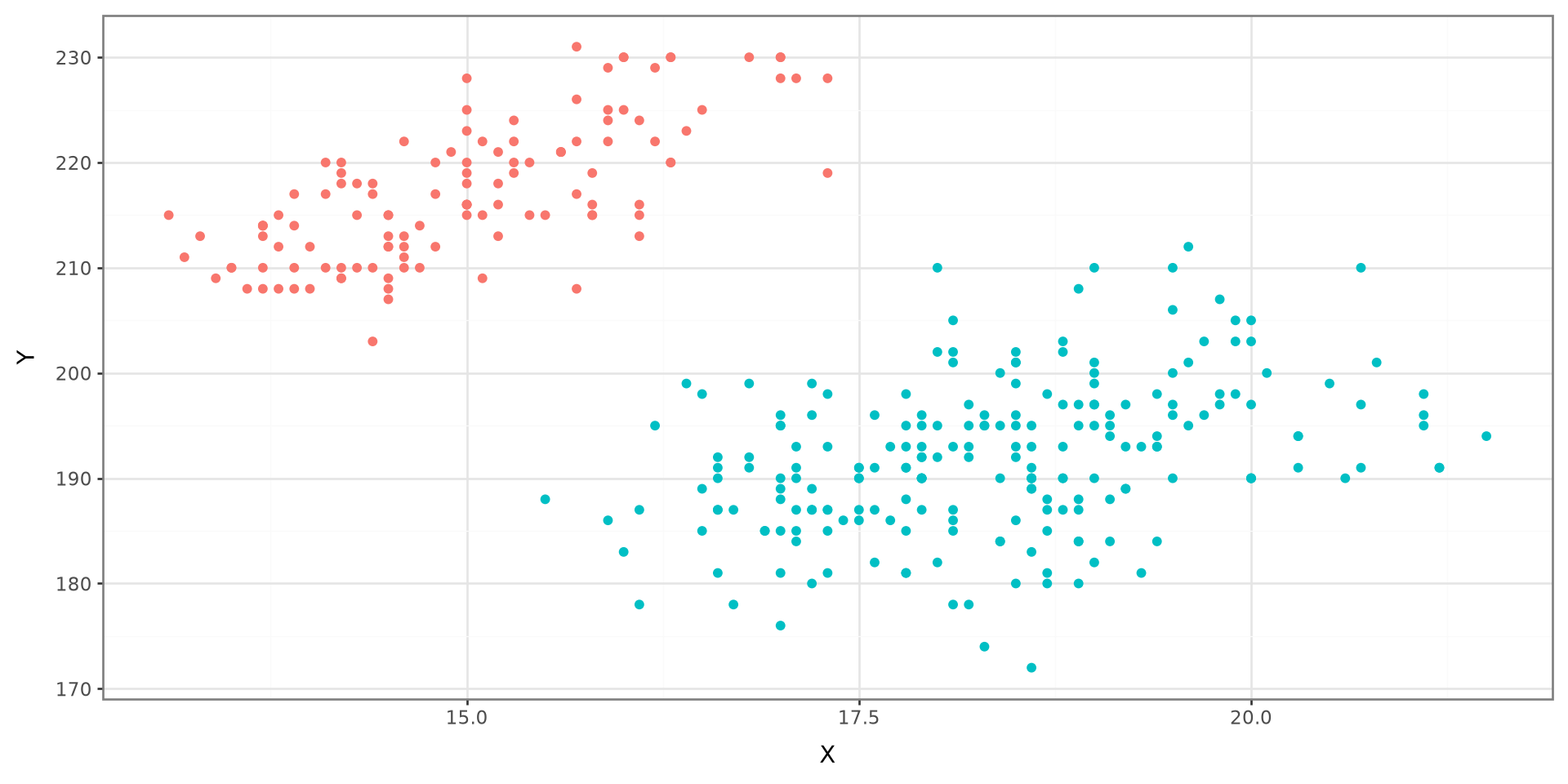

Motivating Example

Maximal Margin Classifier

The Maximal Margin Classifier will impose a hyperplane on a graph that will classify the data given a vector of predictor variables.

Hyperplane

Given a p-dimensional space, a hyperplane is flat affine subspace of p-1 dimensions. It is mathematically defined as:

\[ \beta_0 + \beta_1X_1 + \beta_2 X_2 + \cdots+\beta_pX_p = 0 \]

Hyperplane

Constructing the Hyperplane

A hyperplane is constructed by maximizing the margin \(M\) of the data points that are farthest from the theoretical margin. The data points that define the outer edge of the margins are known as support vectors.

Optimization Problem

• \(\overset{\mathrm{maximize}}{\tiny\beta_0, \beta_1,\ldots,\beta_p,M}\ \large M\)

• subject to \(\sum^p_{j=1}\beta_j^2 = 1\)

• \(y_i(\beta_0 + \beta_1X_{1i} + \beta_2 X_{2i} + \cdots+\beta_pX_{pi})\geq M \ \forall \ i=1,\ldots,n\)

Maximal Margin Classifier

Support Vector Classifier

Support Vector Classifier

Maximal Margin Classifiers have one fatal defect, the data points must be completely on one side of the margin. This does not allow room for error.

A Support Vector Classifier allows for data points to be misclassified if need be.

It achieves this by implementing a Cost mechanism, denoted as \(C\), to account for any errors for data points.

Support Vector Classifiers

Optimization Problem

• \(\overset{\mathrm{maximize}}{\tiny\beta_0, \beta_1,\ldots, \beta_p,\epsilon_1,\ldots, \epsilon_n,M}\ \large M\)

• subject to \(\sum^p_{j=1}\beta_j^2 = 1\)

• \(y_i(\beta_0 + \beta_1X_{1i} + \beta_2 X_{2i} + \cdots+\beta_pX_{pi})\geq M (1-\epsilon_i) \ \forall \ i=1,\ldots,n\)

• \(\epsilon_i\geq 0\)

• \(\sum^n_{i=1} \epsilon_i \leq C\)

Budget C

The tuning parameter \(C\) is known as the budget parameter for error. When the data point is on the correct side of the margin, then it has an error of \(0\). When a data point in on the wrong side the margin, it has a bit of error. When the data point is on the opposite side of the hyperplane, then it has an error greater than \(1\). This is allowed as long as the sum of errors are less than or equal to \(C\).

Support Vector Machines

Motivating Example

Motivating Example

Support Vector Machines

A Support Vector Machine will create a nonlinear boundary instead of a line.

It incorporates a kernel function that will compute the similarities between two support vectors.

The kernel function can be loosely claimed how the data is modeled.

Nonlinear Boundary

Nonlinear Boundary

Support Vector Machines Kernels

• Linear

• Polynomial

• Radial

Python Code

Support Vector Classifier

• Simulation
• Python Code
• Support Vectors
• Summary

# This simulation is executed in the setup chunk.
rng_linear = np.random.default_rng(2434)
x = rng_linear.normal(size=(20, 2))
y = np.repeat([-1, 1], 10)
x[y == 1] += 1

linear_dat = pd.DataFrame(
    {
        "x1": x[:, 0],
        "x2": x[:, 1],
        "y": y,
        "class_label": y.astype(str),
    }
)

linear_svm = SVC(
    kernel="linear",
    C=10,
)
linear_svm.fit(
    linear_dat[["x1", "x2"]],
    linear_dat["y"],
)

linear_support = linear_dat.iloc[linear_svm.support_].copy()

# The decision boundary is where the decision function equals 0.
# The two margins are where it equals -1 and 1.
line_x1 = np.linspace(
    linear_dat["x1"].min() - 0.5,
    linear_dat["x1"].max() + 0.5,
    200,
)
weights = linear_svm.coef_[0]
intercept = linear_svm.intercept_[0]

boundary_lines = pd.concat(
    [
        pd.DataFrame(
            {
                "x1": line_x1,
                "x2": (level - intercept - weights[0] * line_x1) / weights[1],
                "line": label,
            }
        )
        for level, label in [
            (-1, "Lower margin"),
            (0, "Decision boundary"),
            (1, "Upper margin"),
        ]
    ],
    ignore_index=True,
)

(

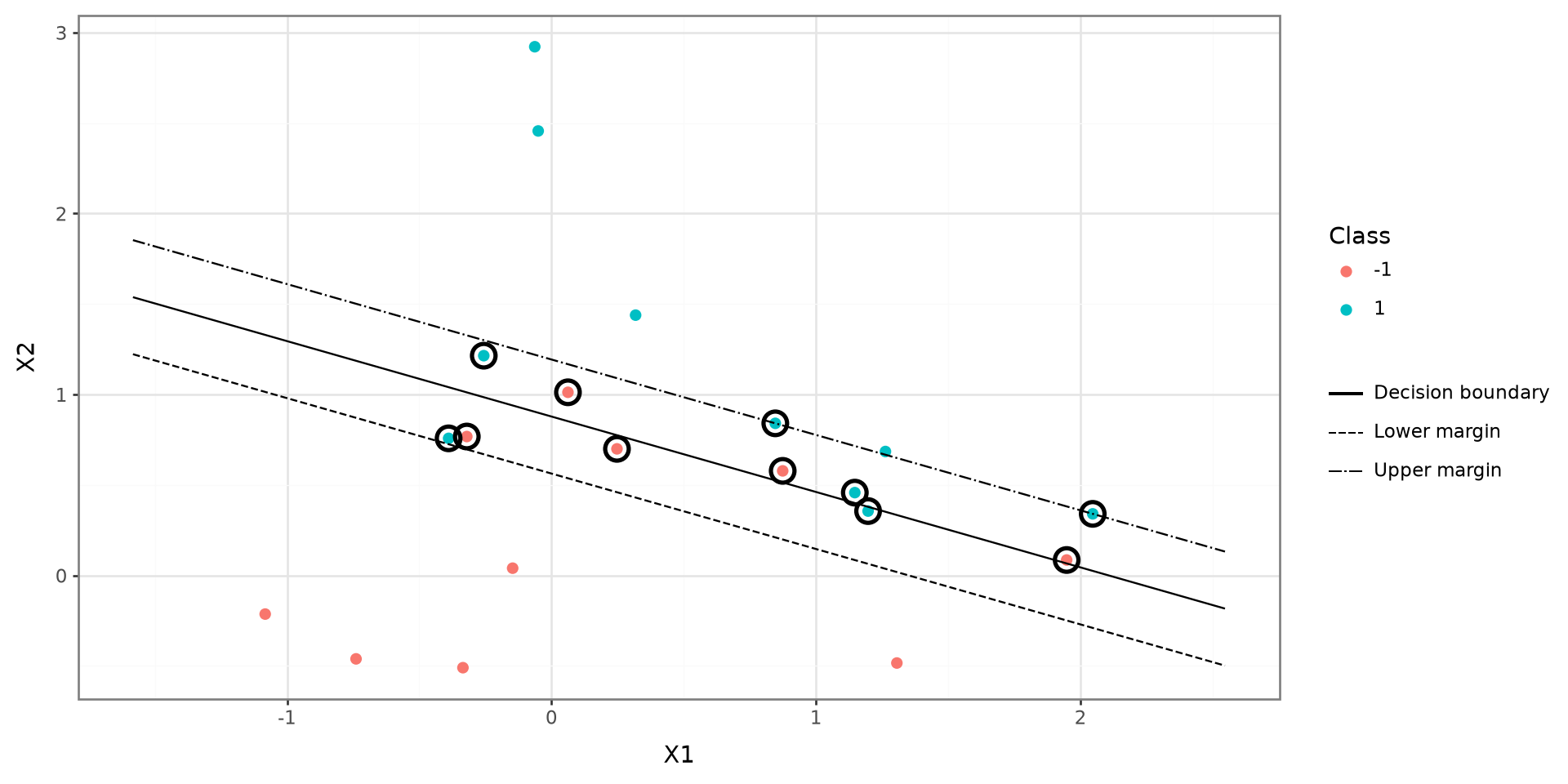

    ggplot(linear_dat, aes(x="x1", y="x2", color="class_label"))
    + geom_point(size=2)
    + geom_line(
        data=boundary_lines,
        mapping=aes(x="x1", y="x2", linetype="line", group="line"),
        color="black",
        inherit_aes=False,
    )
    + geom_point(
        data=linear_support,
        mapping=aes(x="x1", y="x2"),
        shape="o",
        fill="none",
        size=5,
        stroke=1.1,
        color="black",
        inherit_aes=False,
    )
    + labs(x="X1", y="X2", color="Class", linetype="")
    + theme_bw()
)

pd.DataFrame(
    {
        # Add 1 to report indices in the same one-based style as R.
        "support_vector_index": linear_svm.support_ + 1
    }
)

	support_vector_index
0	2
1	3
2	4
3	7
4	9
5	11
6	12
7	14
8	16
9	18
10	20

linear_summary = pd.DataFrame(
    {
        "property": [
            "Kernel",
            "C",
            "Training observations",
            "Number of support vectors",
            "Support vectors in class -1",
            "Support vectors in class 1",
            "Training accuracy",
        ],
        "value": [
            linear_svm.kernel,
            linear_svm.C,
            len(linear_dat),
            len(linear_svm.support_),
            linear_svm.n_support_[0],
            linear_svm.n_support_[1],
            linear_svm.score(
                linear_dat[["x1", "x2"]],
                linear_dat["y"],
            ),
        ],
    }
)

linear_summary

	property	value
0	Kernel	linear
1	C	10
2	Training observations	20
3	Number of support vectors	11
4	Support vectors in class -1	5
5	Support vectors in class 1	6
6	Training accuracy	0.75

Cross-Validation Approach for C

• Python Code
• Summary
• Best Model

cv = StratifiedKFold(
    n_splits=10,
    shuffle=True,
    random_state=2434,
)

cost_grid = {
    "C": [0.001, 0.01, 0.1, 1, 5, 10, 100]
}

tune_out = GridSearchCV(
    estimator=SVC(kernel="linear"),
    param_grid=cost_grid,
    scoring="accuracy",
    cv=cv,
    refit=True,
)

_ = tune_out.fit(
    linear_dat[["x1", "x2"]],
    linear_dat["y"],
)

tuning_summary = (
    pd.DataFrame(tune_out.cv_results_)
    [["param_C", "mean_test_score", "std_test_score", "rank_test_score"]]
    .rename(
        columns={
            "param_C": "C",
            "mean_test_score": "mean_cv_accuracy",
            "std_test_score": "sd_cv_accuracy",
            "rank_test_score": "rank",
        }
    )
    .sort_values("C")
    .reset_index(drop=True)
)

tuning_summary

	C	mean_cv_accuracy	sd_cv_accuracy	rank
0	0.001	0.75	0.250000	1
1	0.010	0.75	0.250000	1
2	0.100	0.70	0.331662	3
3	1.000	0.70	0.244949	3
4	5.000	0.65	0.229129	5
5	10.000	0.60	0.300000	7
6	100.000	0.65	0.229129	5

bestmod = tune_out.best_estimator_

best_model_summary = pd.DataFrame(
    {
        "property": [
            "Best C",
            "Best mean CV accuracy",
            "Kernel",
            "Number of support vectors",
            "Training accuracy",
        ],
        "value": [
            tune_out.best_params_["C"],
            tune_out.best_score_,
            bestmod.kernel,
            len(bestmod.support_),
            bestmod.score(
                linear_dat[["x1", "x2"]],
                linear_dat["y"],
            ),
        ],
    }
)

best_model_summary

	property	value
0	Best C	0.001
1	Best mean CV accuracy	0.75
2	Kernel	linear
3	Number of support vectors	20
4	Training accuracy	0.85

Prediction

• Set Up
• Prediction

# These test observations are generated in the setup chunk.
test_x = rng_linear.normal(size=(20, 2))
test_y = rng_linear.choice([-1, 1], size=20, replace=True)
test_x[test_y == 1] += 1

testdat = pd.DataFrame(
    {
        "x1": test_x[:, 0],
        "x2": test_x[:, 1],
        "y": test_y,
        "class_label": test_y.astype(str),
    }
)

y_pred = bestmod.predict(testdat[["x1", "x2"]])

pd.crosstab(
    pd.Series(y_pred, name="pred"),
    testdat["y"].rename("truth"),
)

truth	-1	1
pred
-1	7	6
1	2	5

Python Code: SVM

• Data
• Plot
• SVM

# This nonlinear simulation and train/test split are executed in setup.
rng_radial = np.random.default_rng(1)
x = rng_radial.normal(size=(200, 2))
x[:100] += 2
x[100:150] -= 2
y = np.concatenate([np.repeat(1, 150), np.repeat(2, 50)])

radial_dat = pd.DataFrame(
    {
        "x1": x[:, 0],
        "x2": x[:, 1],
        "y": y,
        "class_label": y.astype(str),
    }
)

train_indices = rng_radial.choice(radial_dat.index, size=100, replace=False)
radial_train = radial_dat.loc[train_indices].copy()

(

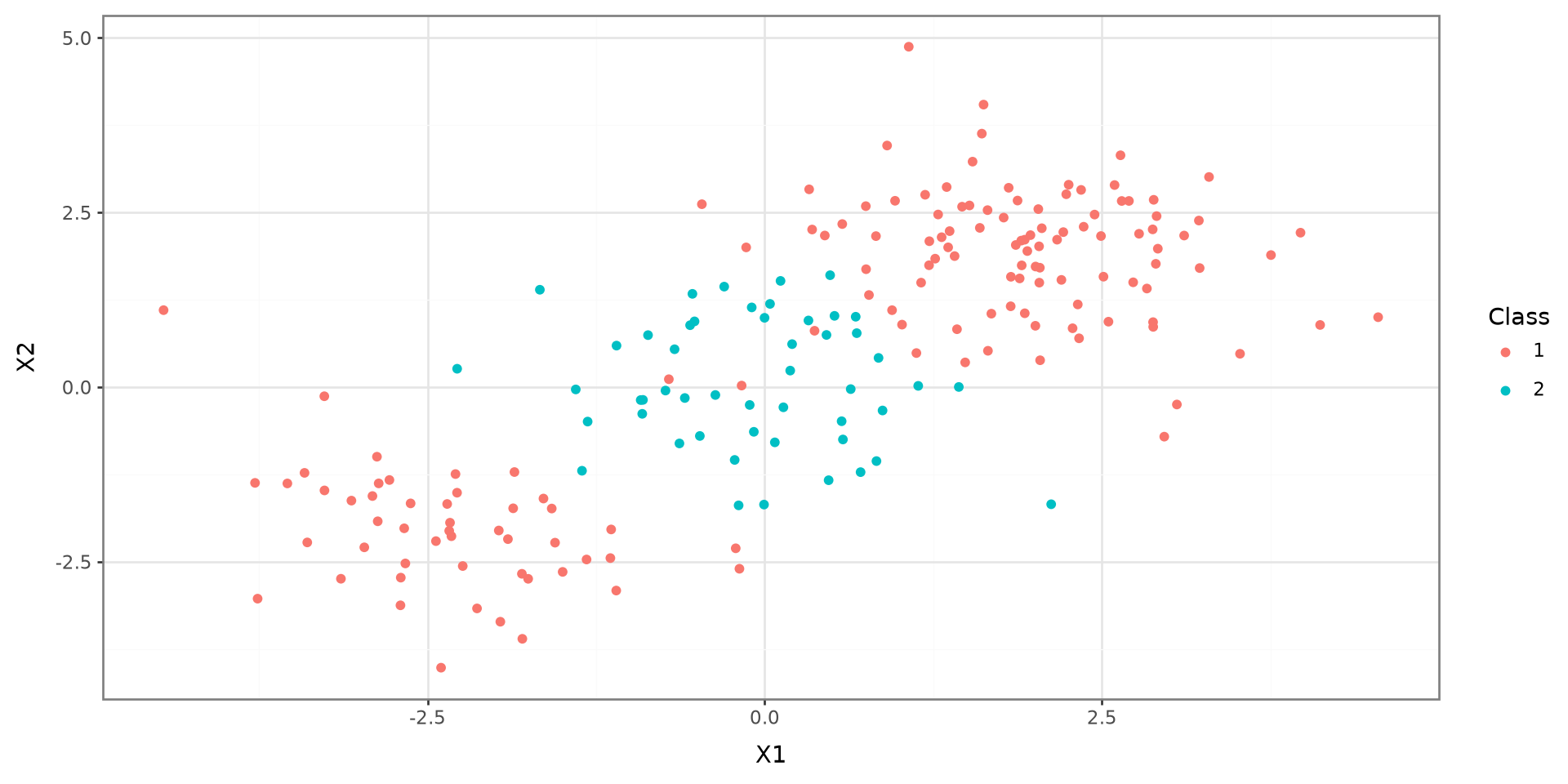

    ggplot(radial_dat, aes(x="x1", y="x2", color="class_label"))
    + geom_point()
    + labs(x="X1", y="X2", color="Class")
    + theme_bw()
)

radial_svm = SVC(
    kernel="rbf",
    gamma=1,
    C=1,
)
radial_svm.fit(
    radial_train[["x1", "x2"]],
    radial_train["y"],
)

radial_grid, radial_x1_values, radial_x2_values = make_prediction_grid(
    radial_svm,
    radial_train,
)
radial_boundary = find_boundary_points(
    radial_grid,
    radial_x1_values,
    radial_x2_values,
)
radial_support = radial_train.iloc[radial_svm.support_].copy()

(

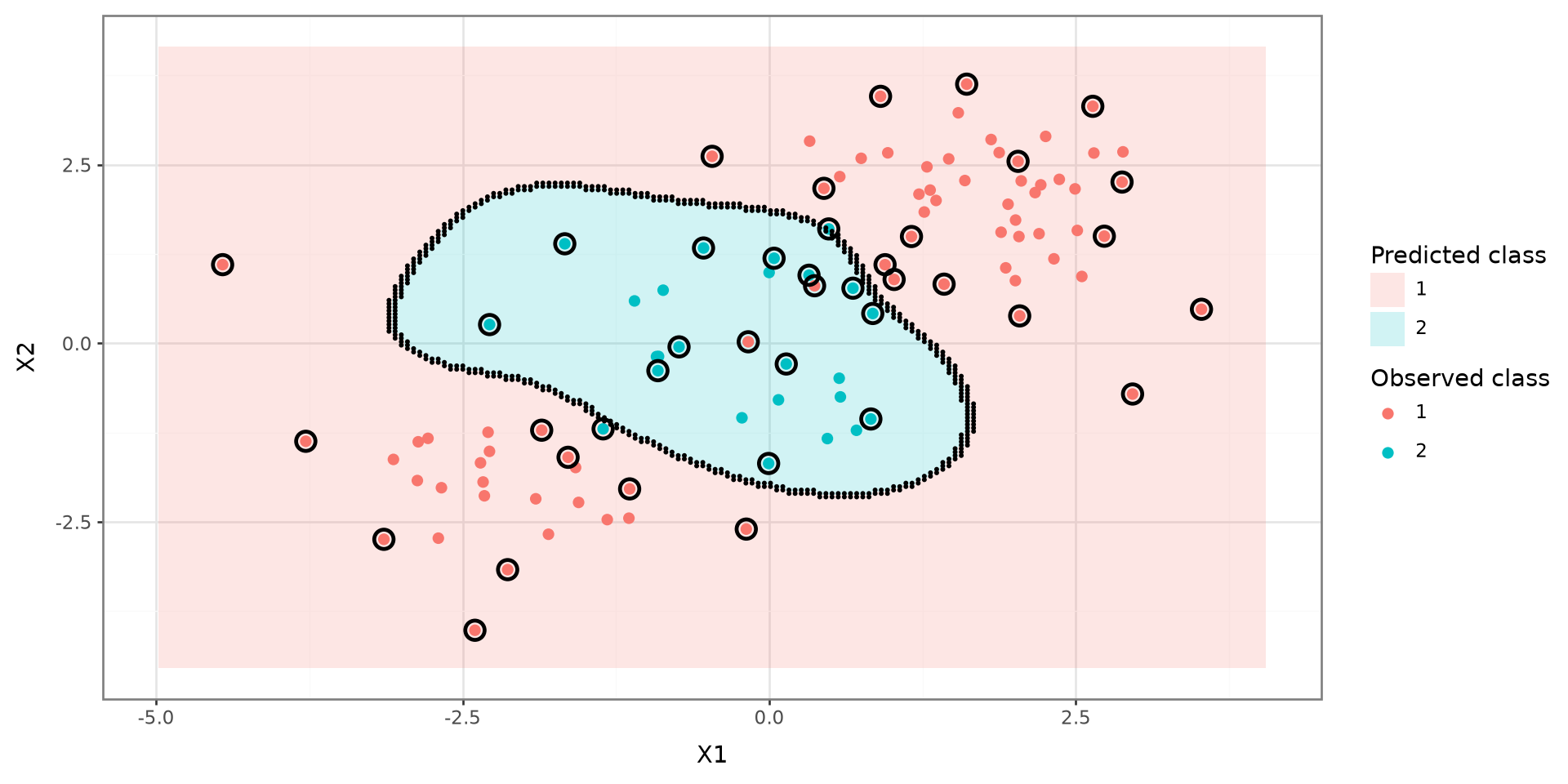

    ggplot()
    + geom_tile(
        data=radial_grid,
        mapping=aes(x="x1", y="x2", fill="prediction"),
        alpha=0.18,
    )
    + geom_point(
        data=radial_train,
        mapping=aes(x="x1", y="x2", color="class_label"),
        size=2,
    )
    + geom_point(
        data=radial_boundary,
        mapping=aes(x="x1", y="x2"),
        size=0.25,
        color="black",
        inherit_aes=False,
    )
    + geom_point(
        data=radial_support,
        mapping=aes(x="x1", y="x2"),
        shape="o",
        fill="none",
        size=4,
        stroke=1,
        color="black",
        inherit_aes=False,
    )
    + labs(
        x="X1",
        y="X2",
        color="Observed class",
        fill="Predicted class",
    )
    + theme_bw()
)
