Introduction to Statistical Learning

Learning Outcomes

• Introduction to Statistical Learning

• Classification vs Regression

• Supervised vs Unsupervised Machine Learning

Python Modules, Functions, and Parameters

import numpy as np
import pandas as pd
from plotnine import *
from pygam import LinearGAM, s, l
import statsmodels.api as sm
from statsmodels.gam.api import GLMGam, BSplines
from sklearn.datasets import load_iris
from sklearn.neighbors import KNeighborsClassifier
from sklearn.metrics import confusion_matrix
from sklearn.svm import SVC


rng = np.random.default_rng(909)

Book

Introduction to Statistical Learning

Introduction to Statistical Learning

What is Statistical Learning?

Statistical learning is the task of predicting an outcome of interest given a set of predictor variables.

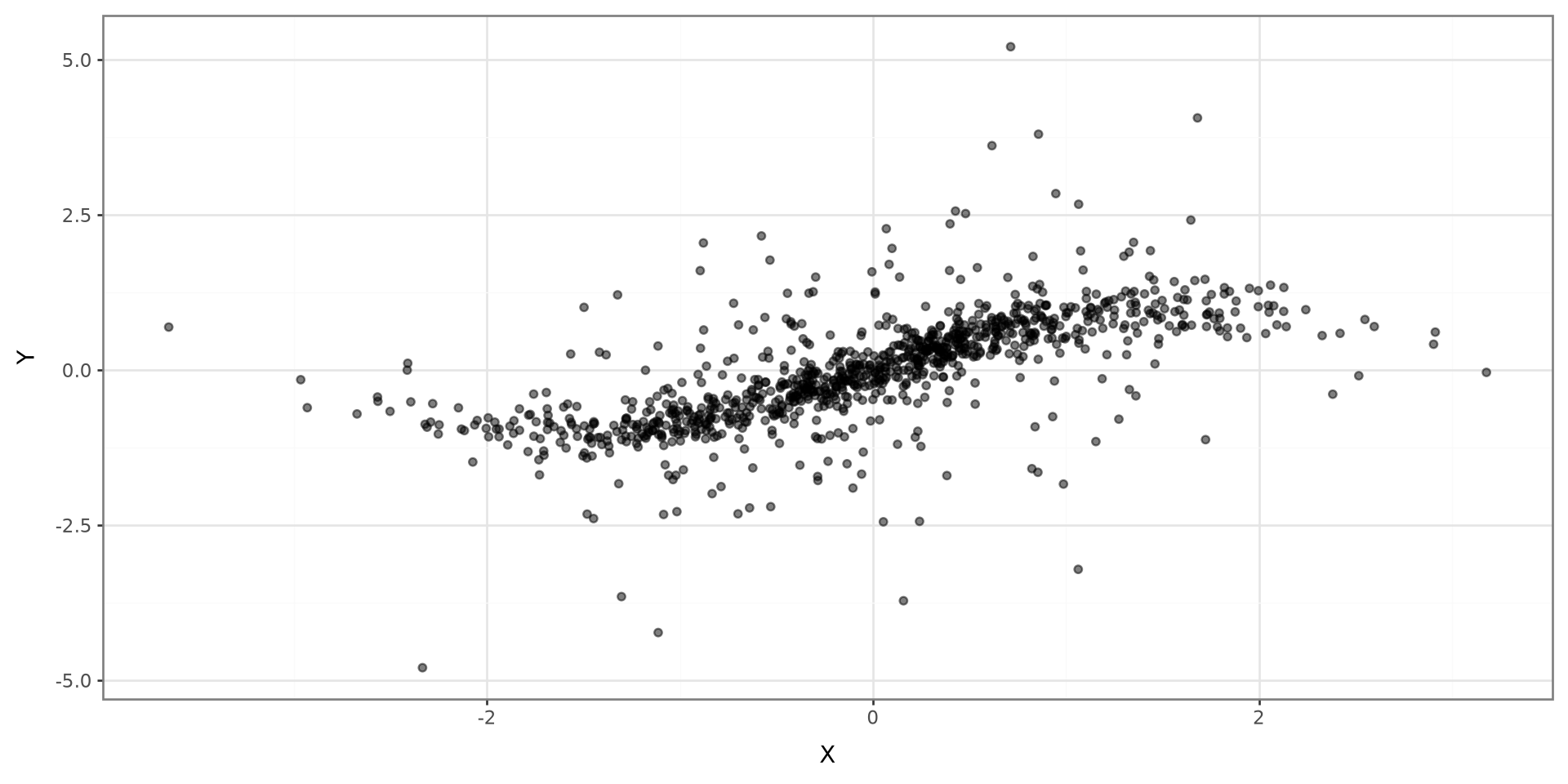

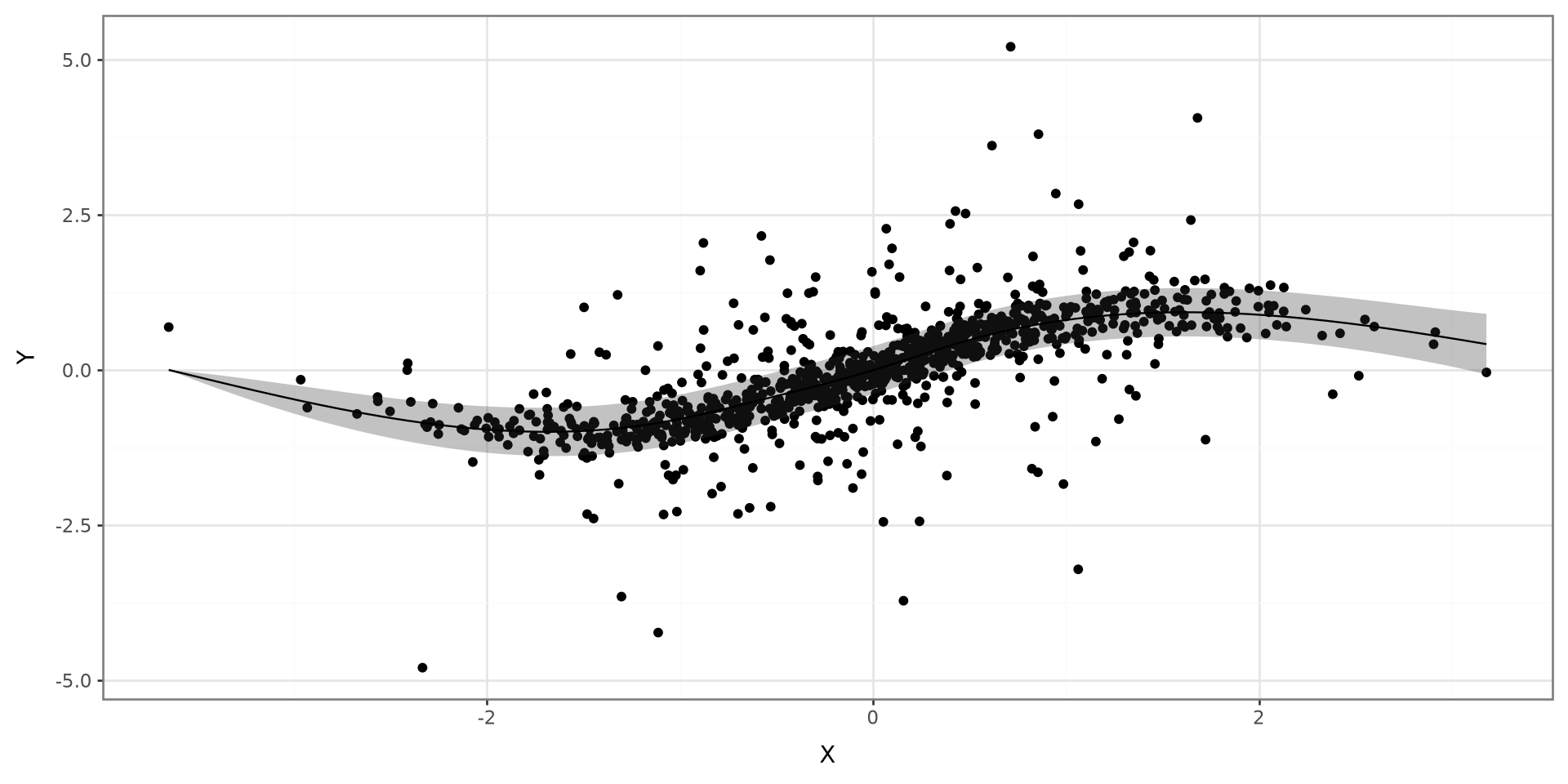

Motivating Example

Statistical Learning Model

\[ Y = f(\boldsymbol X) + \varepsilon \]

• \(Y\): Outcome variable

• \(f(\cdot)\): systematic component explaining \(Y\)

• \(\boldsymbol X\): vector of predictor variables

• \(\varepsilon\): error term

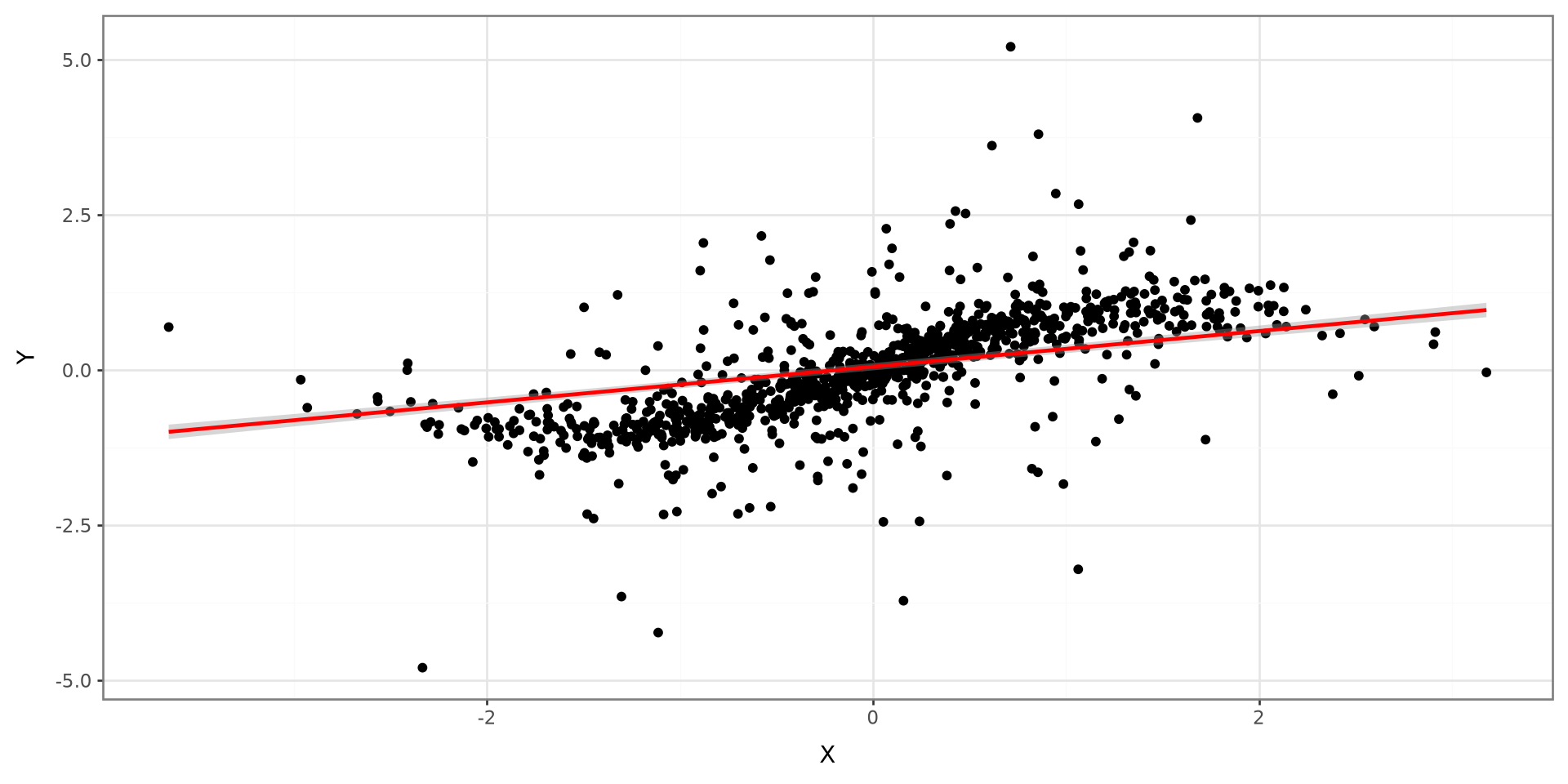

Modeling \(f(\cdot)\): Parametric

• Linear Models

• Generalized Linear Models (GLM)

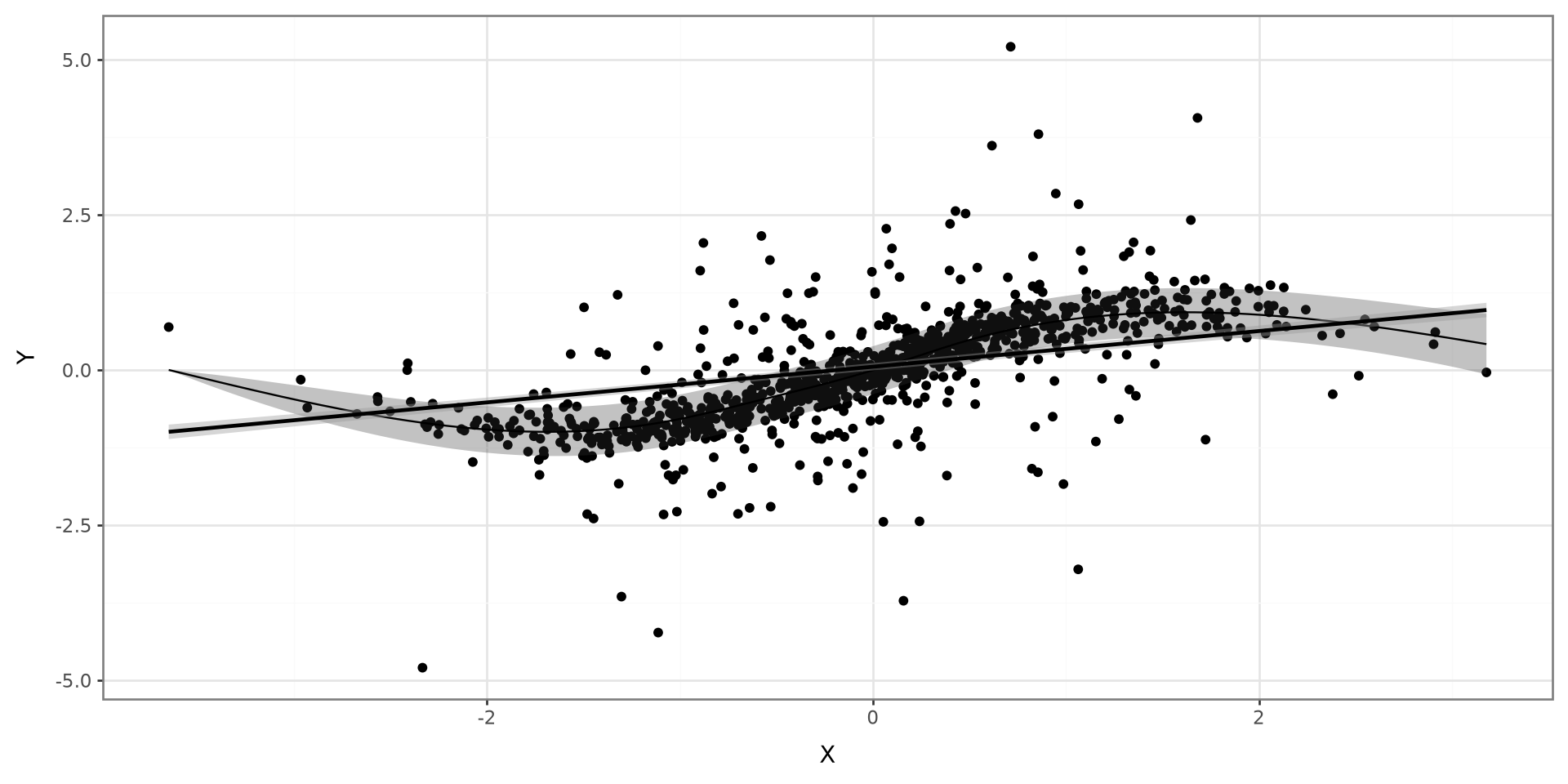

Modeling \(f(\cdot)\): Nonparametric

• Generalized Additive Models

• Local-Linear Models

• Smoothing Splines

Prediction

• Statistical Learning is only concerned with an accurate \(Y\)

• \(f(\cdot)\) is considered a black box

• We will not know how \(\boldsymbol X\) explains \(Y\)

• We choose flexible (nonparametric) models

Model Interpretability

• With a focus on prediction, model interpretability declines

• We will not know how changes in \(\boldsymbol X\) will affect \(Y\)

Classification vs Regression

Regression

Regression in statistical learning terms indicates predicting a continuous random variable.

What are the methods that we learned to model continuous random variables?

Example

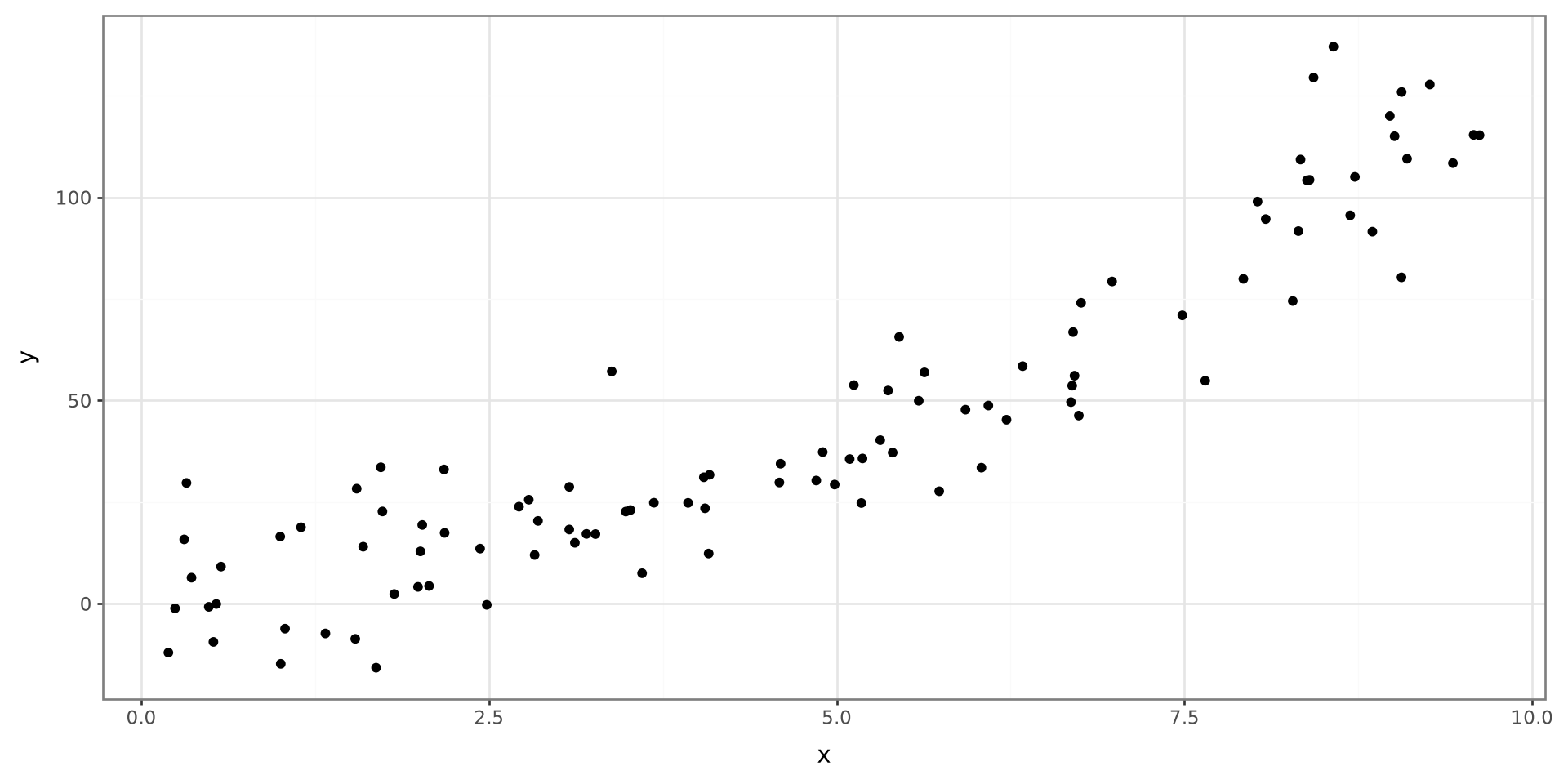

• Scatter Plot
• Regression
• GAM
• Combined

Classification

Classification in statistical learning terms indicates predicting a categorical random variable.

What are the methods that we learned to model categorical random variables?

Example

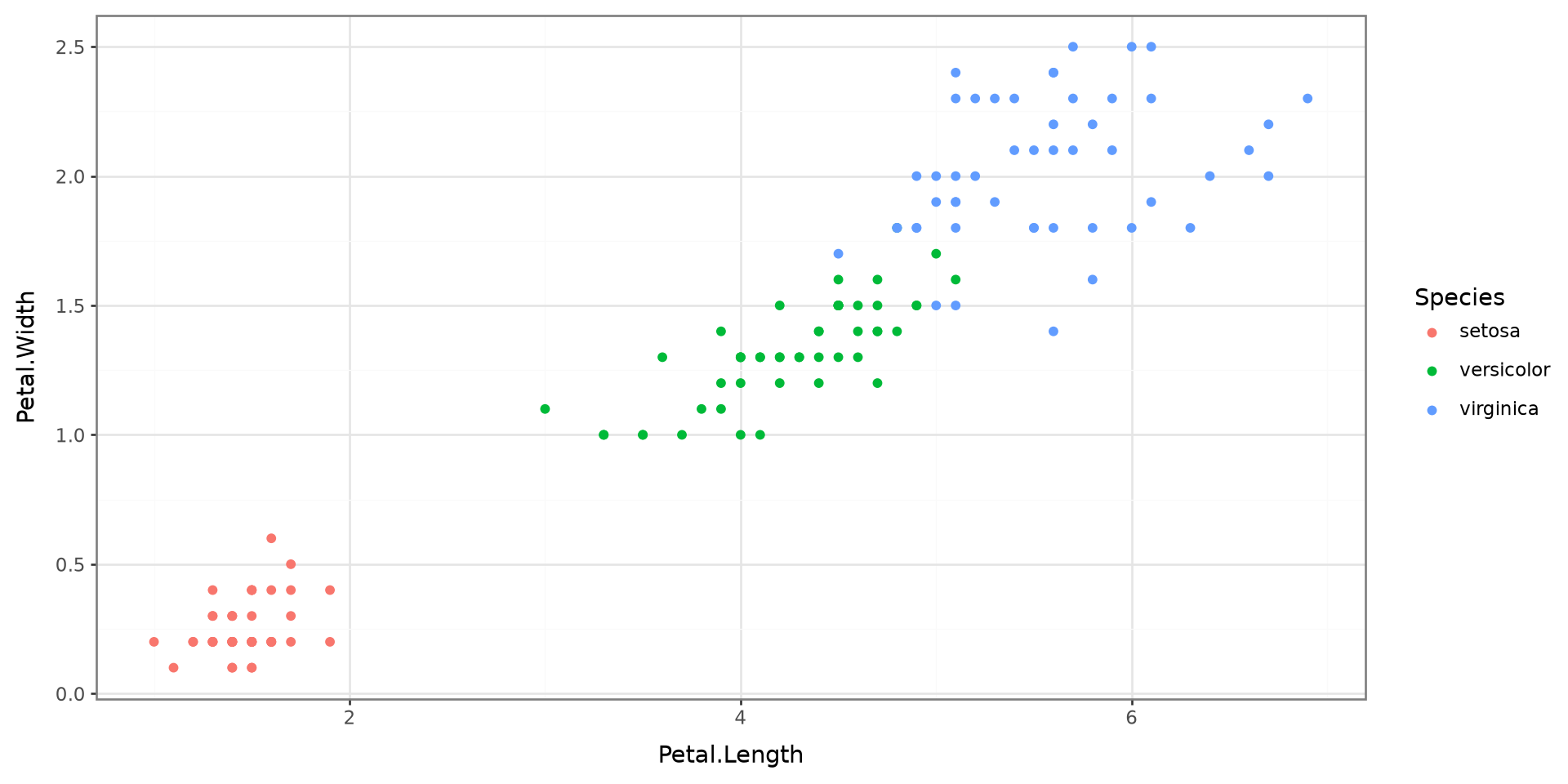

• Data
• KNN
• SVM

Predicted   setosa  versicolor  virginica
Actual
setosa          20           0          0
versicolor       0          18          2
virginica        0           2         18

Actual      setosa  versicolor  virginica
Predicted
setosa          50           0          0
versicolor       0          48          2
virginica        0           2         48

Supervised vs Unsupervised Machine Learning

Machine Learning

Machine learning is a set of methods used for predicting and classifying data. Several statistical methods are considered machine learning techniques.

Common Methods

• Regression

• Mixed-Effects

• Nonparametric Regression

• Neural Networks

• Tree-based methods

• Bayesian Methods

Training Data

Training Data is the data set used to construct a model.

Supervised

Supervised Machine Learning techniques are techniques where the training data contains the outcome.

Unsupervised

Unsupervised Machine Learning techniques are techniques where the training data does not contains the outcome.

Model Adequacy

Quality of Fit: Regression

\[ MSE = \frac{1}{n}\sum^n_{i=1}\{y_i - \hat f(\boldsymbol x_i)\}^2 \]

Quality of Fit: Classification

\[ ER = \frac{1}{n}\sum^n_{i=1}I(y_i \ne \hat y_i) \]

Bias-Variance Tradeoff

Bias-Variance Tradeoff

\[ E(MSE) = E\left\{y-\hat f(x)\right\}^2 = Var\left\{\hat f(x)\right\} + Bias\left\{\hat f(x)\right\}^2 \]

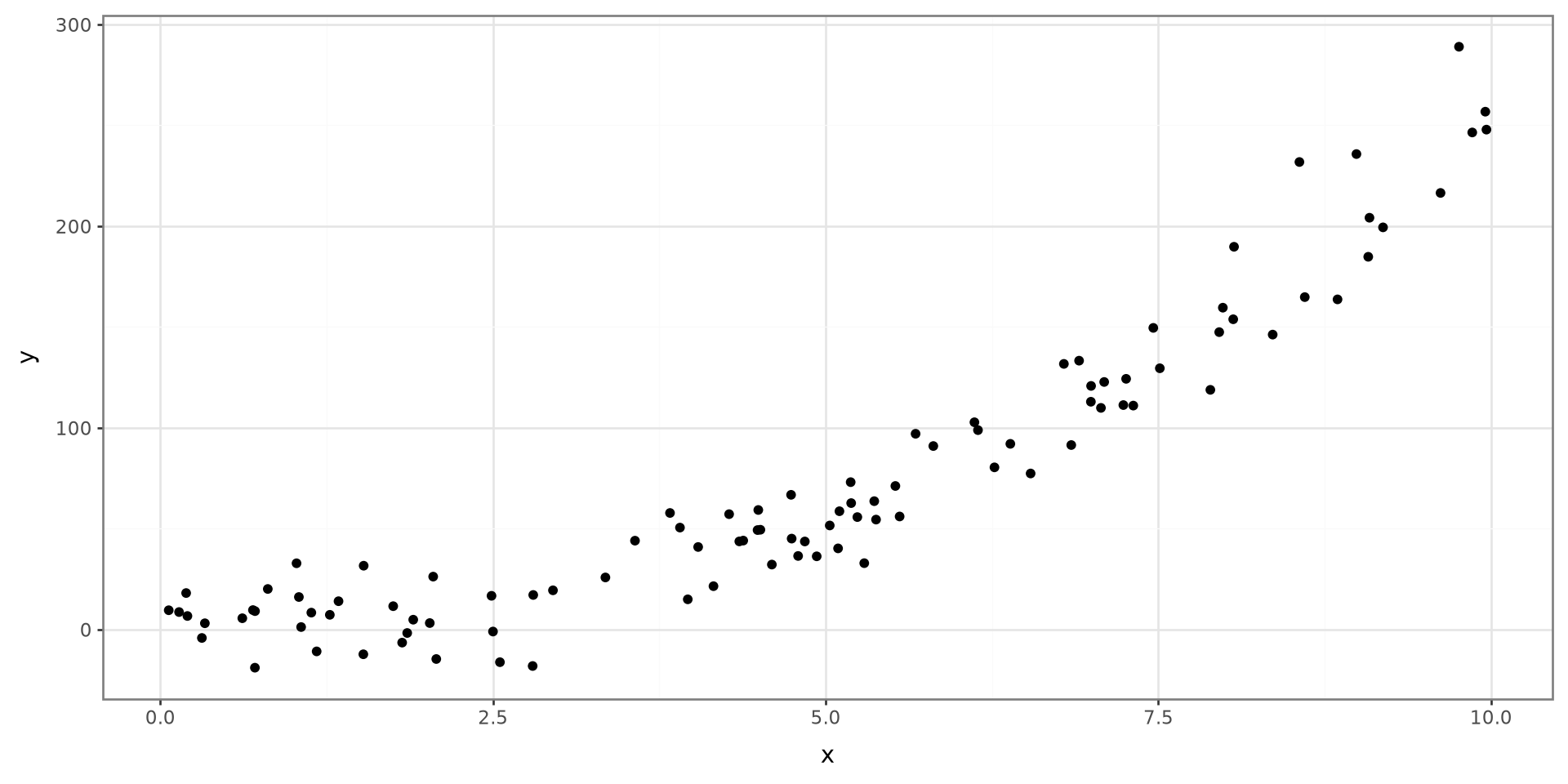

Example

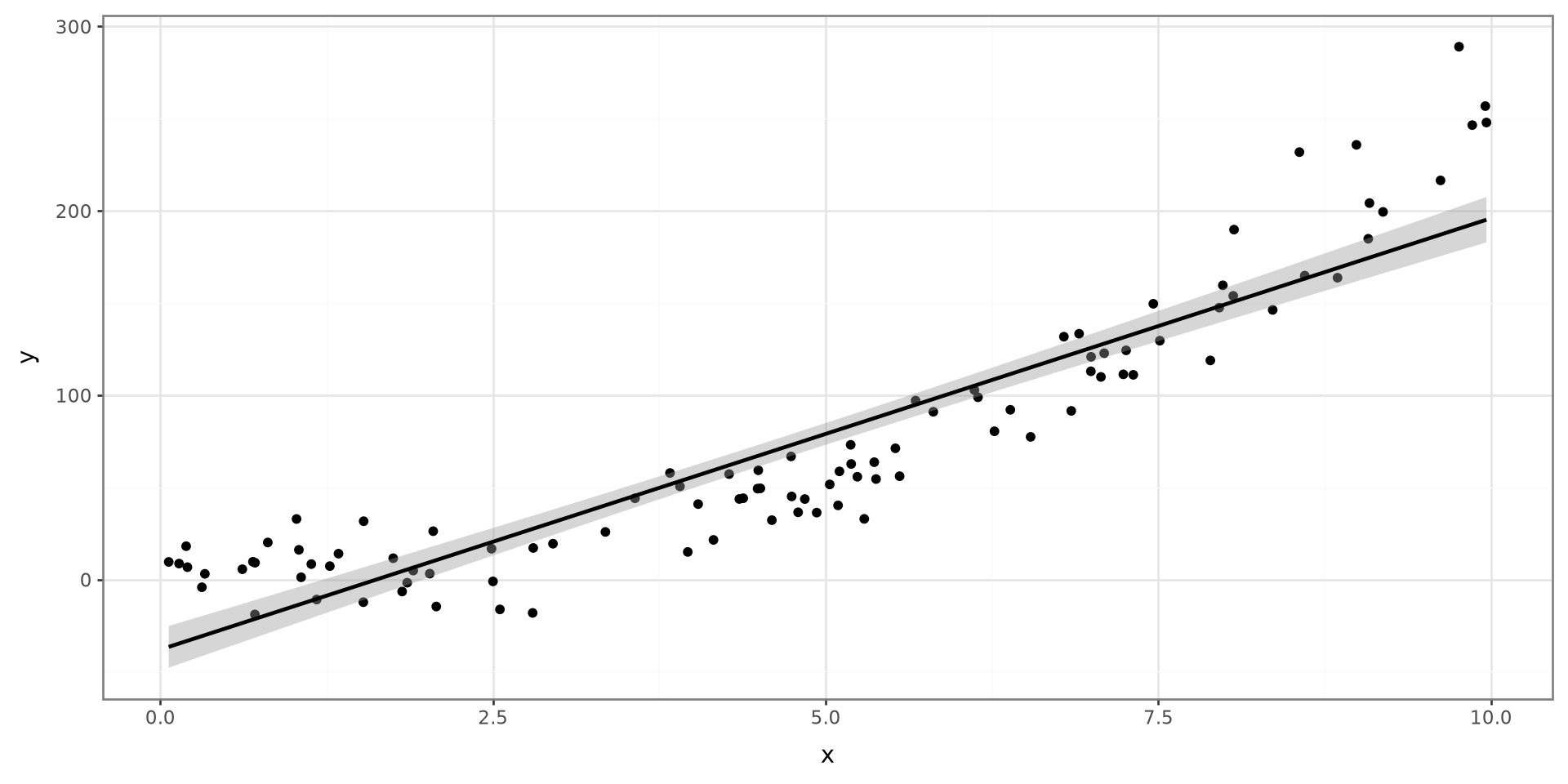

Using a Line

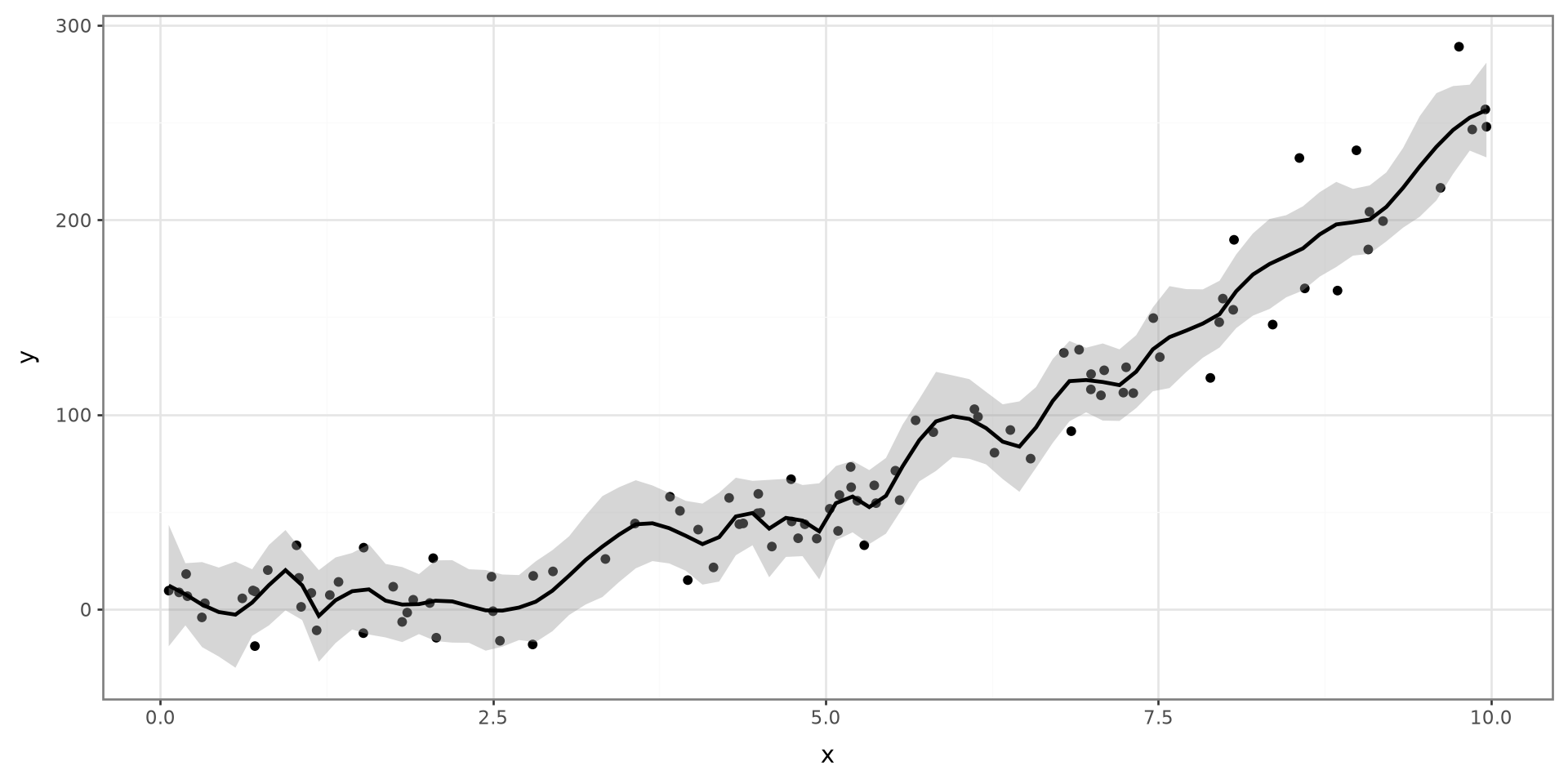

Using a Highly Fleible Model

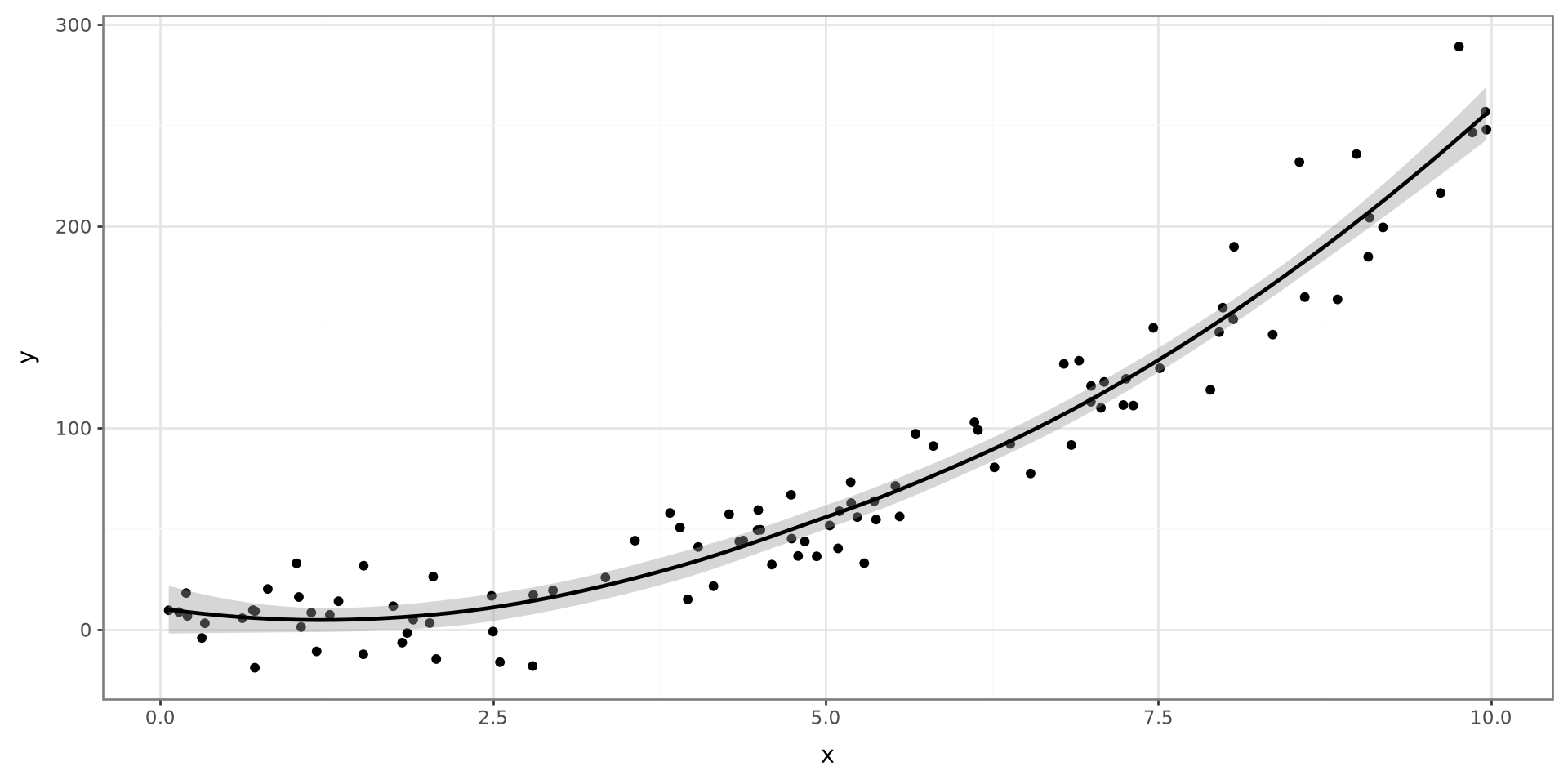

Semi-Flexible

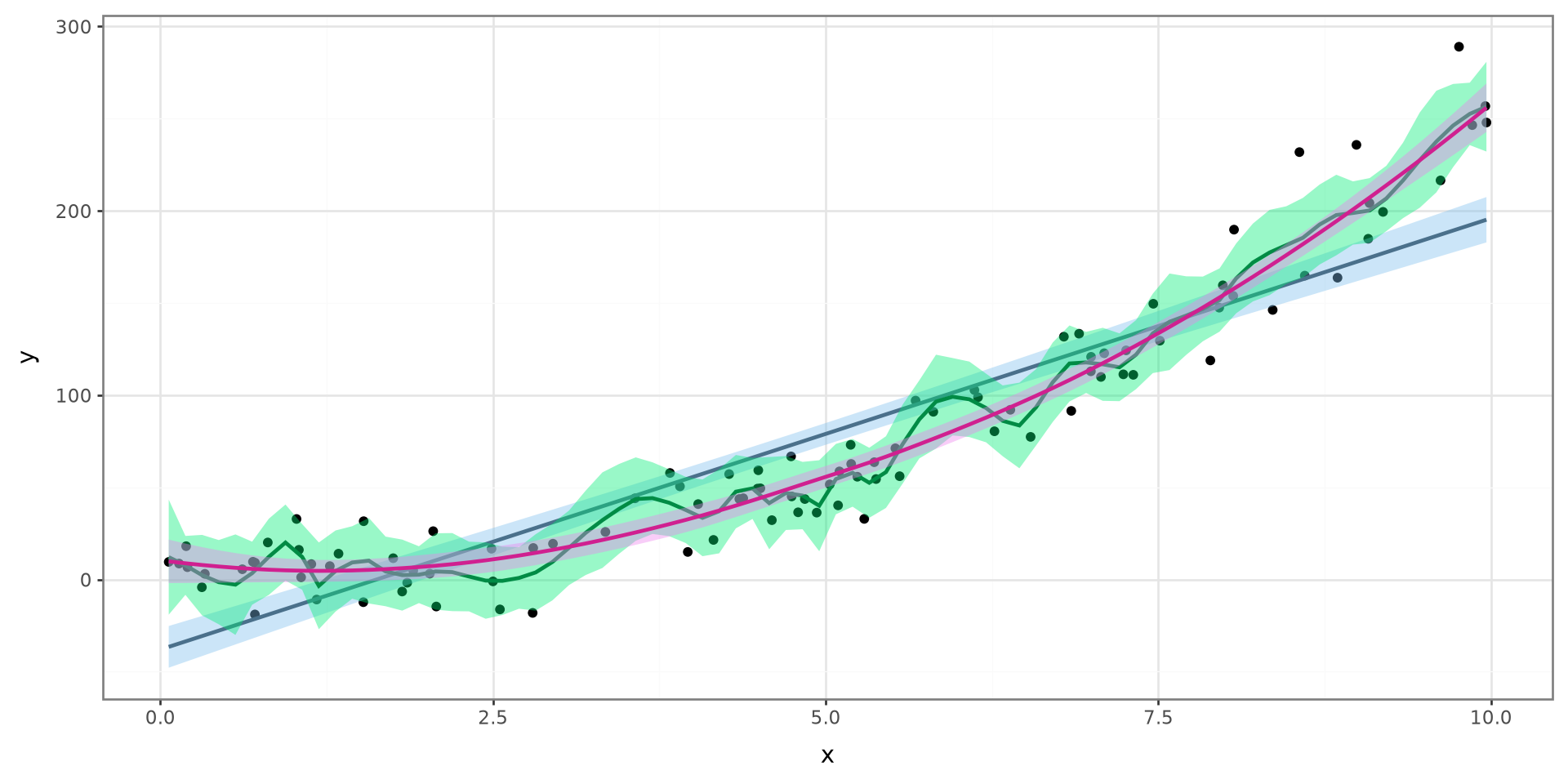

All
