Linear Regression

Learning Objectives

  • Linear Regression
  • Multivariable Linear Regression

Python Modules, Functions, and Parameters

import numpy as np
import pandas as pd
import statsmodels.formula.api as smf
from IPython.display import display
from plotnine import *
from plotnine.data import penguins as penguins_data

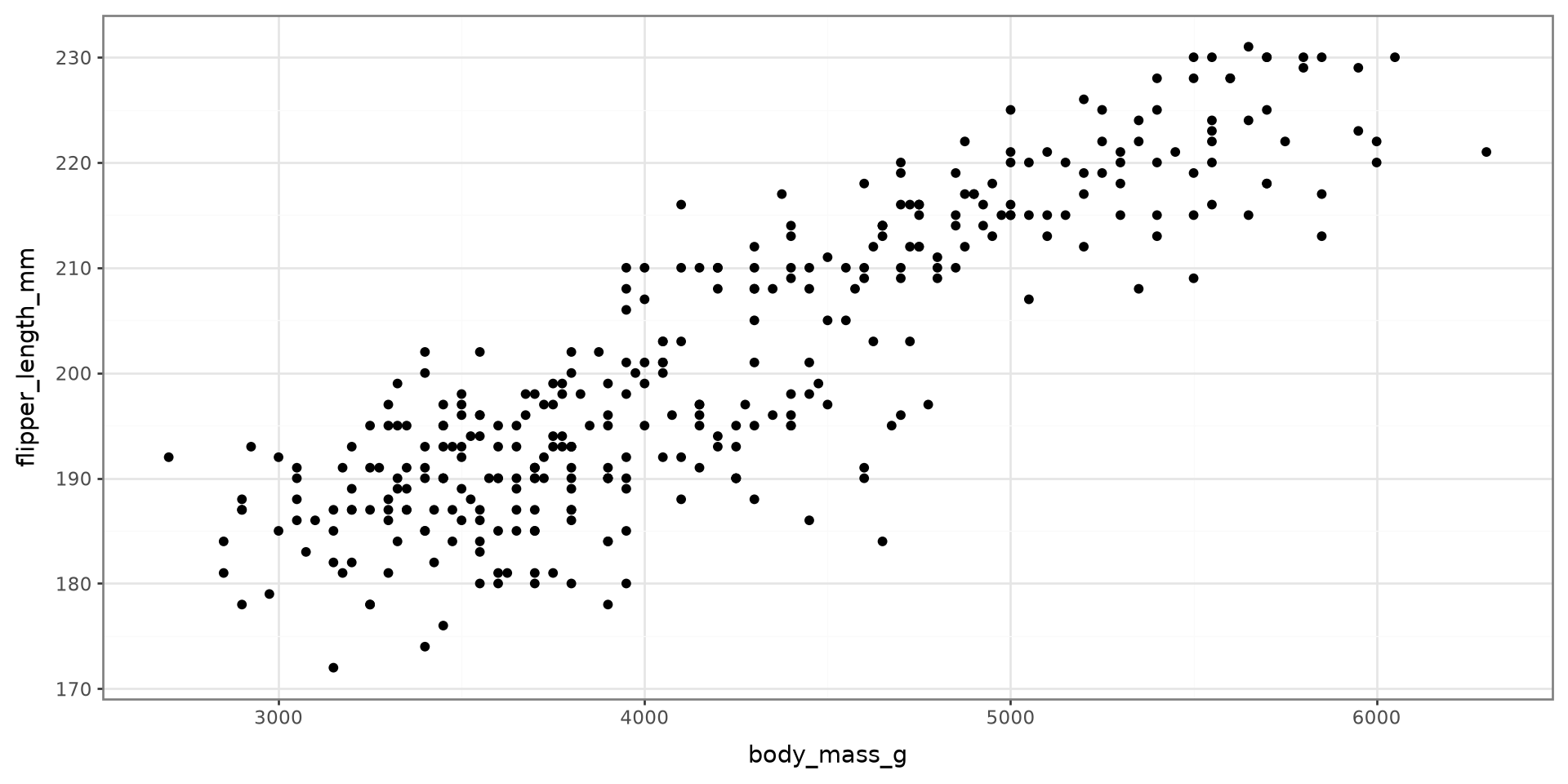

Scatter Plot

Linear Regression

Linear Regression

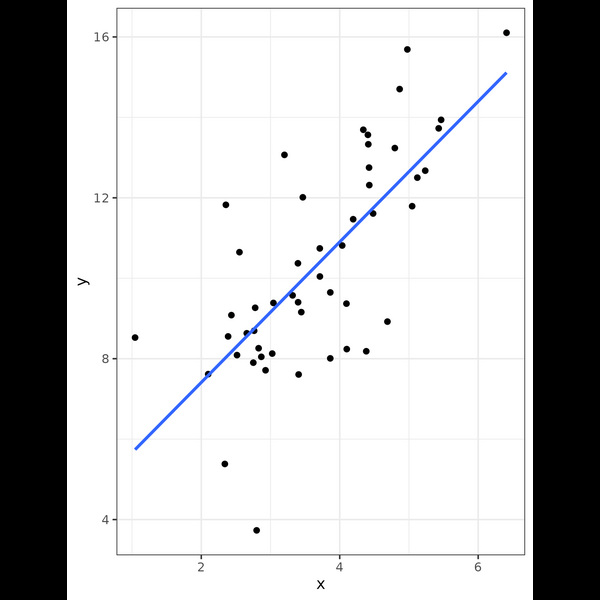

Linear regression is used to model the association between a set of predictor variables (x’s) and an outcome variable (y). Linear regression will fit a line that best describes the data points.

Scatter Plot

Simple Linear Regression

Simple linear regression will model the association between one predictor variable and an outcome:

\[ Y = \beta_0 + \beta_1 X + \epsilon \]

  • \(\beta_0\): Intercept term

  • \(\beta_1\): Slope term

  • \(\epsilon\sim N(0,\sigma^2)\)

Estimated Model

\[ \hat Y = \hat \beta_0 + \hat \beta_1 X \]

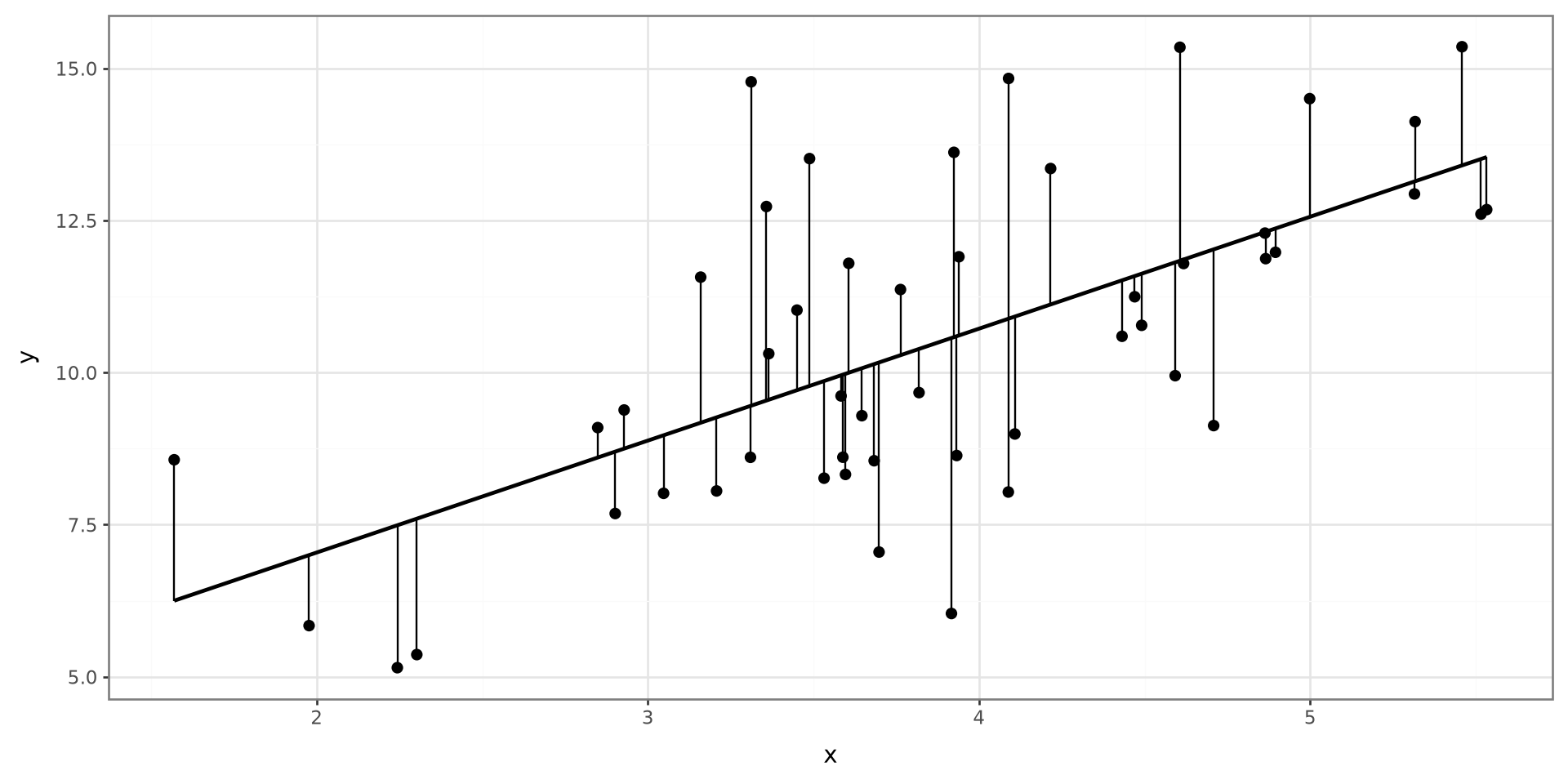

Process

Process

Sums of Error Squared

\[ RSS = \sum^n_{i=1}(Y_i-\hat Y_i)^2 \]

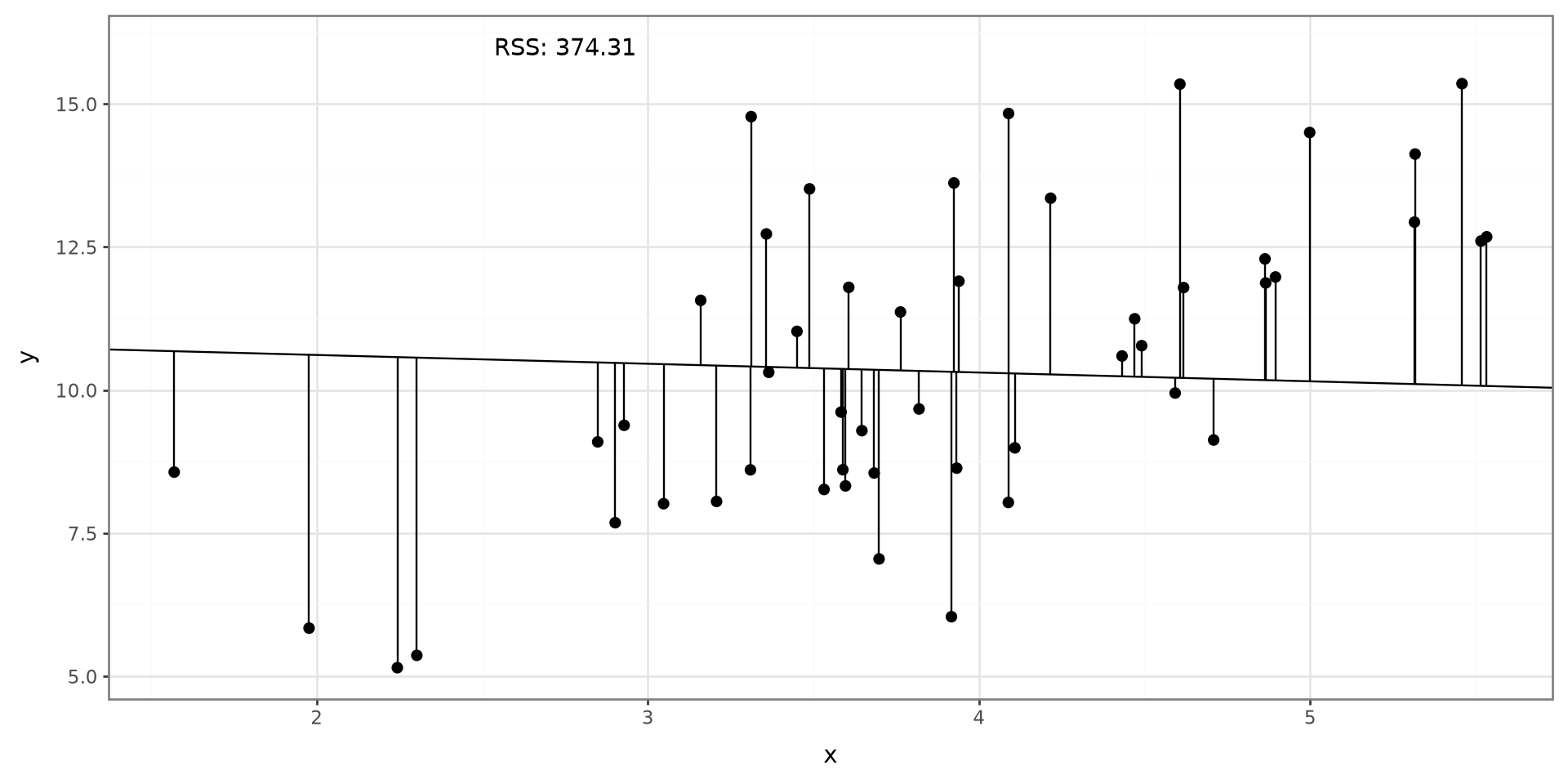

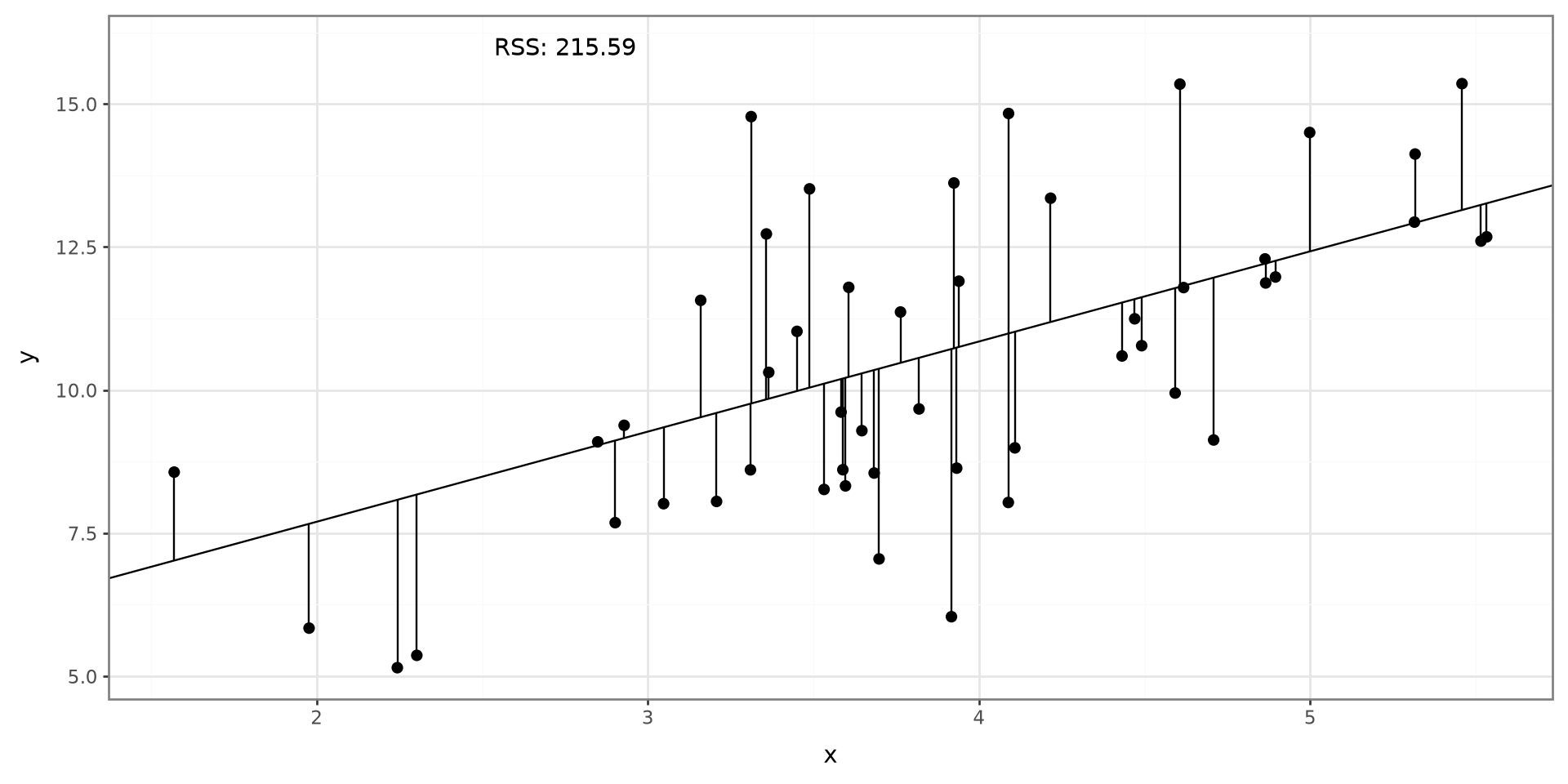

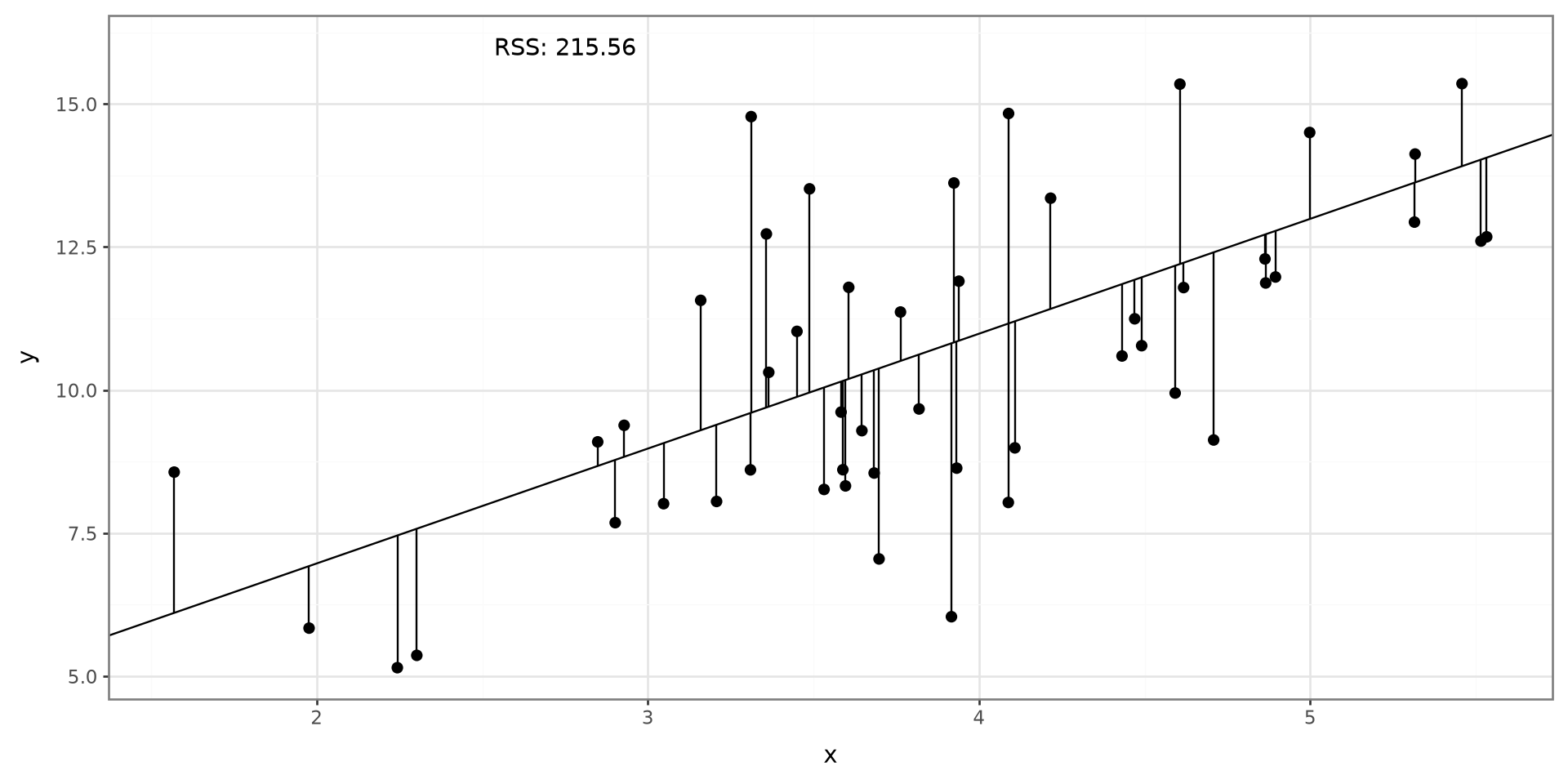

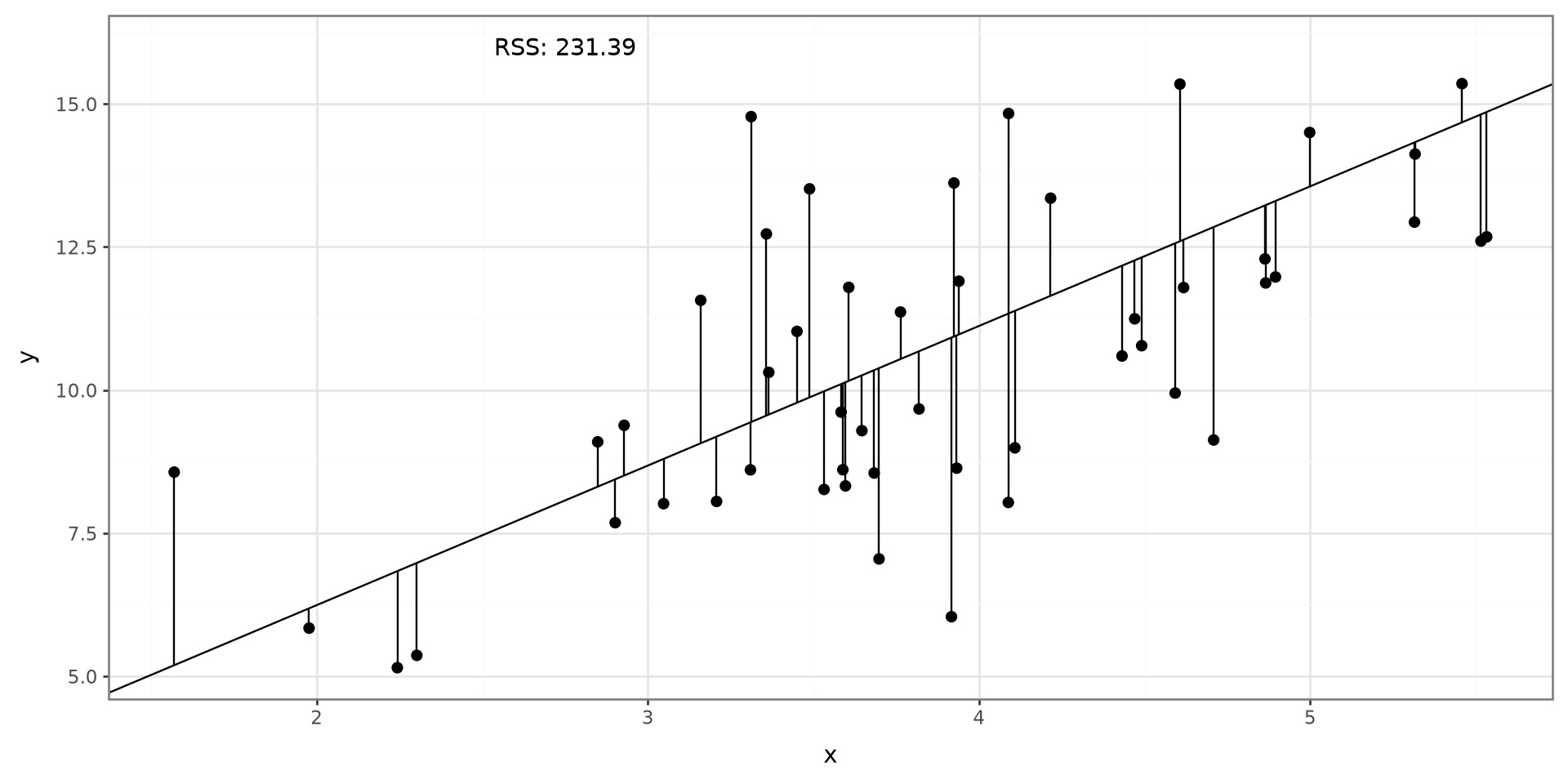

Searching

Searching

Searching

Searching

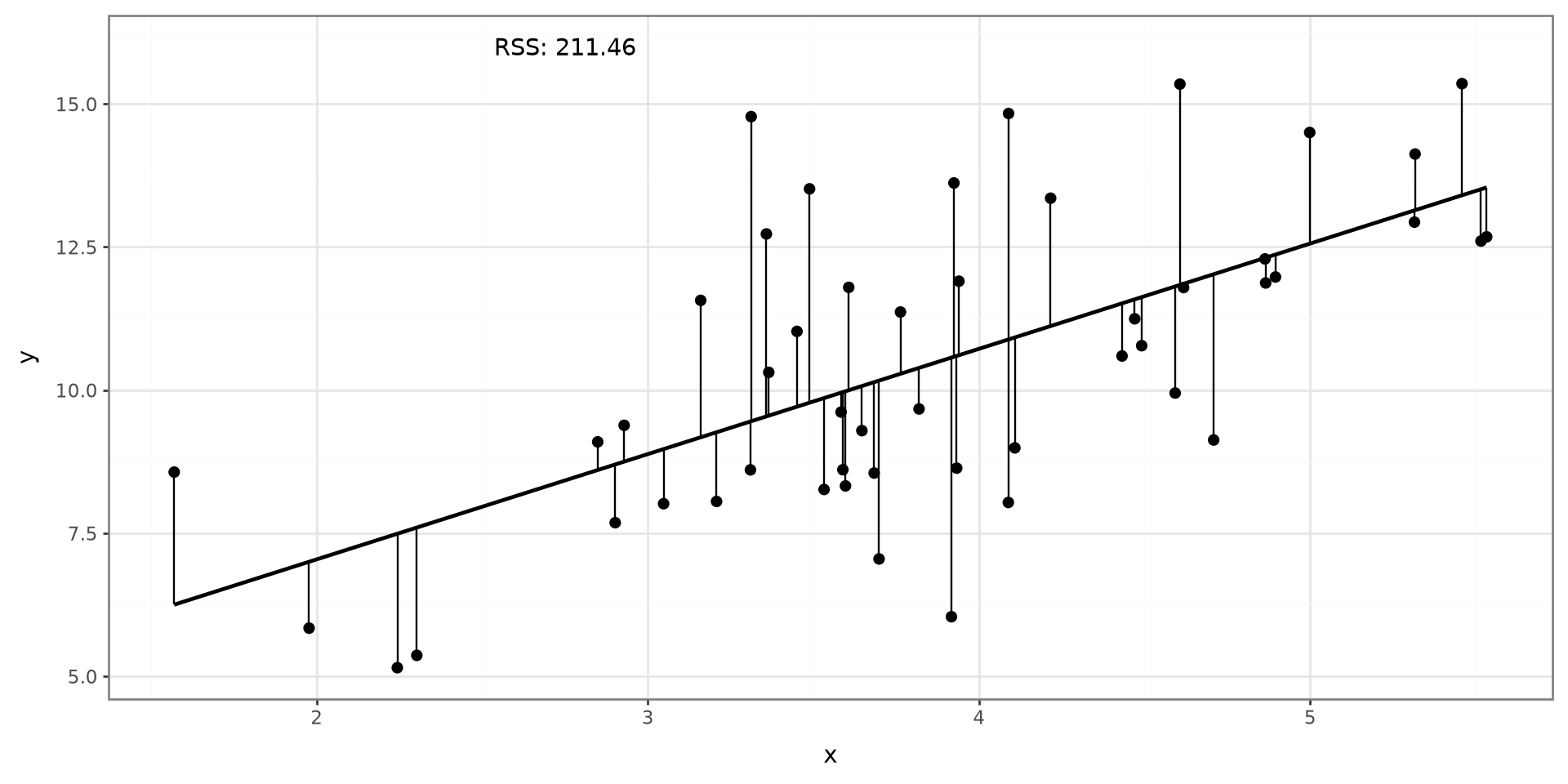

Final

Linear Regression Simulation

Generate X Values

Simulate 250 independent values (x) from \(N(3, 1)\) and plot a histogram

x = np.random.normal(loc=3, scale=1, size=250)

Generate Y Values

Create a new variable with the following formula:

\[ Y_i = 3 X_i + 20 \] Create a Scatter Plot

Generate Error Term

Generate \(\epsilon_i\sim N(0, 2)\)

Create a histogram

Add error term

Create final form of \(Y_i\):

\[ Y_i = 3 X_i + 20 + \epsilon_i \]

Create a scatter plot

Simulation Study

To confirm that smf.ols() works, repeat the process 100 times and obtain the average \(\beta\) estimates:

  1. Generate 250 X values
  2. Create Y Value
  3. Add error term
  4. Fit Model
  5. Store Values
  6. Find the means of the coefficient

Python Code of Simulation Study

# Generating seends
simulation_seeds = np.arange(1_000) + RANDOM_SEED


# Simulation study
def simulate_coefficients(seed):
    local_rng = np.random.default_rng(seed)
    x = local_rng.normal(loc=3, scale=1, size=250)
    expected_y = 3 * x + 20
    error = local_rng.normal(loc=0, scale=2, size=250)
    y = expected_y + error

    simulated_data = pd.DataFrame({"x": x, "y": y})
    result = smf.ols("y ~ x", data=simulated_data).fit()
    return result.params


sim_results = pd.DataFrame(
    [simulate_coefficients(seed) for seed in simulation_seeds]
)
sim_results.mean().rename("mean_estimate").to_frame()
mean_estimate
Intercept 20.002111
x 2.998998

Multivariable Linear Regresion

MLR

Multivariable linear regression models are used when more than one explanatory variable is used to explain the outcome of interest.

Continuous Variable

To fit an additional continuous random variable to the model, we will only need to add it to the model:

\[Y = \beta_0 +\beta_1 X_1 + \beta_2 X_2\]

Example

Using the Palmer Penguins data, fit a model with body_mass_g as the outcome and flipper_length_mm and bill_length_mm as predictors.

continuous_model = smf.ols(
    "body_mass_g ~ flipper_length_mm + bill_length_mm",
    data=penguins_continuous,
).fit()

continuous_model.summary()
OLS Regression Results
Dep. Variable: body_mass_g R-squared: 0.760
Model: OLS Adj. R-squared: 0.759
Method: Least Squares F-statistic: 536.6
Date: Sun, 02 Aug 2026 Prob (F-statistic): 9.09e-106
Time: 21:50:55 Log-Likelihood: -2527.7
No. Observations: 342 AIC: 5061.
Df Residuals: 339 BIC: 5073.
Df Model: 2
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept -5736.8972 307.959 -18.629 0.000 -6342.649 -5131.146
flipper_length_mm 48.1449 2.011 23.939 0.000 44.189 52.101
bill_length_mm 6.0475 5.180 1.168 0.244 -4.141 16.236
Omnibus: 5.475 Durbin-Watson: 2.113
Prob(Omnibus): 0.065 Jarque-Bera (JB): 5.408
Skew: 0.308 Prob(JB): 0.0669
Kurtosis: 3.025 Cond. No. 2.98e+03


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
[2] The condition number is large, 2.98e+03. This might indicate that there are
strong multicollinearity or other numerical problems.

Interpretation

OLS Regression Results
Dep. Variable: body_mass_g R-squared: 0.760
Model: OLS Adj. R-squared: 0.759
Method: Least Squares F-statistic: 536.6
Date: Sun, 02 Aug 2026 Prob (F-statistic): 9.09e-106
Time: 21:50:56 Log-Likelihood: -2527.7
No. Observations: 342 AIC: 5061.
Df Residuals: 339 BIC: 5073.
Df Model: 2
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept -5736.8972 307.959 -18.629 0.000 -6342.649 -5131.146
flipper_length_mm 48.1449 2.011 23.939 0.000 44.189 52.101
bill_length_mm 6.0475 5.180 1.168 0.244 -4.141 16.236
Omnibus: 5.475 Durbin-Watson: 2.113
Prob(Omnibus): 0.065 Jarque-Bera (JB): 5.408
Skew: 0.308 Prob(JB): 0.0669
Kurtosis: 3.025 Cond. No. 2.98e+03


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
[2] The condition number is large, 2.98e+03. This might indicate that there are
strong multicollinearity or other numerical problems.

Categorical Variable

A categorical variable can be included in a model, but a reference category must be specified.

Fitting a model with categorical variables

To fit a model with categorical variables, we must utilize dummy (binary) variables that indicate which category is being referenced. We use \(C-1\) dummy variables where \(C\) indicates the number of categories. When coded correctly, each category will be represented by a combination of dummy variables.

Example

If we have 4 categories, we will need 3 dummy variables:

Cat 1 Cat 2 Cat 3 Cat 4
Dummy 1 1 0 0 0
Dummy 2 0 1 0 0
Dummy 3 0 0 1 0

Which one is the reference category?

Fitting a model with categorical variables

Using the Palmer Penguins data, fit a model with body_mass_g as the outcome and flipper_length_mm and island as predictors.

categorical_model = smf.ols(
    "body_mass_g ~ flipper_length_mm + C(island)",
    data=penguins_categorical,
).fit()

categorical_model.summary()
OLS Regression Results
Dep. Variable: body_mass_g R-squared: 0.774
Model: OLS Adj. R-squared: 0.772
Method: Least Squares F-statistic: 386.4
Date: Sun, 02 Aug 2026 Prob (F-statistic): 7.60e-109
Time: 21:50:56 Log-Likelihood: -2517.3
No. Observations: 342 AIC: 5043.
Df Residuals: 338 BIC: 5058.
Df Model: 3
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept -4624.9820 392.409 -11.786 0.000 -5396.853 -3853.111
C(island)[T.Dream] -262.1831 54.971 -4.769 0.000 -370.311 -154.055
C(island)[T.Torgersen] -185.1284 70.302 -2.633 0.009 -323.413 -46.844
flipper_length_mm 44.5432 1.866 23.872 0.000 40.873 48.213
Omnibus: 6.196 Durbin-Watson: 2.387
Prob(Omnibus): 0.045 Jarque-Bera (JB): 5.956
Skew: 0.302 Prob(JB): 0.0509
Kurtosis: 3.228 Cond. No. 3.85e+03


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
[2] The condition number is large, 3.85e+03. This might indicate that there are
strong multicollinearity or other numerical problems.

MLR Simulation Study

Simulation Study

Simulate 1000 random variables from the following model:

\[Y = 3 + 2X_1 + 4X_2 + \epsilon\]

  • \(X_1\sim N(2,1)\)

  • \(X_2\sim N(-4,1)\)

  • \(\epsilon\sim N(0, 2)\)

# The executed data are created in the setup chunk.
# Equivalent Python generation code:
rng = np.random.default_rng(911)
x1 = rng.normal(loc=2, scale=1, size=1_000)
x2 = rng.normal(loc=-4, scale=1, size=1_000)
y = 3 + 2 * x1 + 4 * x2 + rng.normal(
    loc=0,
    scale=np.sqrt(2),
    size=1_000,
)
mlr_simulation = pd.DataFrame({"x1": x1, "x2": x2, "y": y})

Fit Model

Fit a model between \(Y\) and \(X_1\).

Repeat the process 1000 times. and answer the following questions:

  • On average does \(\beta_1\) get estimated correctly? Why?

  • What is the average model variance?

MLR Model

Instead of fitting a simple linear regression model. Fit a model that will include predictor \(X_2\). This can be done by adding \(X_2\) in Python:

mlr_model = smf.ols("y ~ x1 + x2", data=mlr_simulation).fit()
mlr_model.summary()
OLS Regression Results
Dep. Variable: y R-squared: 0.906
Model: OLS Adj. R-squared: 0.906
Method: Least Squares F-statistic: 4831.
Date: Sun, 02 Aug 2026 Prob (F-statistic): 0.00
Time: 21:50:56 Log-Likelihood: -1792.1
No. Observations: 1000 AIC: 3590.
Df Residuals: 997 BIC: 3605.
Df Model: 2
Covariance Type: nonrobust
coef std err t P>|t| [0.025 0.975]
Intercept 3.1269 0.215 14.566 0.000 2.706 3.548
x1 1.9037 0.045 42.020 0.000 1.815 1.993
x2 3.9834 0.046 87.184 0.000 3.894 4.073
Omnibus: 0.837 Durbin-Watson: 2.115
Prob(Omnibus): 0.658 Jarque-Bera (JB): 0.706
Skew: -0.029 Prob(JB): 0.702
Kurtosis: 3.116 Cond. No. 22.6


Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.

Modify your simulation study and see what happens to \(\beta_1\) and the model variance.

Matrix Formulation

Matrix Formulation

\[Y_i = \boldsymbol X_i^\mathrm T \boldsymbol \beta + \epsilon_i\]

  • \(Y_i\): Outcome Variable

  • \(\boldsymbol X_i\): Predictors

  • \(\boldsymbol \beta\): Coefficients

  • \(\epsilon_i\): error term

Matrix Formulation

\[\boldsymbol\beta = (\boldsymbol X^\mathrm T \boldsymbol X)^{-1} \boldsymbol X^\mathrm T \boldsymbol Y\]
