Resampling Methods

Python Setup

import numpy as np
import pandas as pd
import statsmodels.api as sm
from plotnine import (
    aes,
    geom_line,
    geom_point,
    ggplot,
    labs,
    scale_x_log10,
    theme_minimal,
)
from plotnine.data import mtcars as mtcars_raw
from plotnine.data import penguins as penguins_raw
from sklearn.linear_model import Lasso, LassoCV, Ridge, RidgeCV
from sklearn.model_selection import LeaveOneOut
from sklearn.preprocessing import StandardScaler

penguins = penguins_raw.dropna().copy()
mtcars = mtcars_raw.copy()

lambdas = np.geomspace(1, 1000, 200)
loo = LeaveOneOut()

Learning Outcomes

• Cross-Validation

  • Leave-one-out

  • K-Fold

• Bootstrap Methods

Training Error Rate

Training Error Rate is the error rate of the data used to create the model of interest. It describes how well the model predicts the data used to construct it.

Test Error Rate

Test Error Rate is the error rate of predicting a new data point using the current established model.

Test Error Rate

In order to obtain the test error rate, data not used to fit the model must be available

This is not the case the majority of time.

New methods have been developed to compute the test error rate using the existing data.

Cross-Validation

Cross-Validation

A cross-validation approach is to obtain a good estimate of the error-rate of a machine learning algorithm. We split the data set into two categories: training and testing. The training data set is used to train the model, and the test data is used to test the model and compute the error rate.

Tuning Parameter

A cross-validation approach is great when there is a tuning parameter. We can fit a model for different values of the tuning parameter, and we can choose which value results in the lowest error rate.

Training and Testing Data

The training and testing data sets are constructed by randomly assigning data points to one type of data.

LOOCV Cross-Validation

• Choose a set of tuning parameters to test.

• For each \(k\)th turning parameter, calculate the tuning parameter error for each value

  • Utilize the leave-one-out approach

    • For each observation fit a model with the remaining observations and fit the excluded value

    • Compute the following error:

      \[CVE_k = \frac{1}{n}\sum^n_{i=1}e_i\]

• Identify the \(k\)th tuning parameter with the lowest \(CVE_k\)

K-Fold Cross-Validation

• Choose a set of tuning parameters to test.

• Create different K subsets of the data.

• For each \(j\)th turning parameter Calculate the tuning parameter error for each value

  • For each K subset, fit a model using the data excluding the Kth subset

  • Predict the values in the Kth subset using the fitted model

  • Repeat the process for each K subset

  • Compute the following error:

    \[CVE_j = \frac{1}{n}\sum^n_{i=1}e_i\]

• Identify the \(j\)th tuning parameter with the lowest \(CVE_j\)

Executing in Python

Several Python packages have developed methods to execute a cross-validation approach.

CV in scikit-learn

cv_model = RidgeCV(
    alphas=lambdas,          # Candidate penalty values
    cv=None,                 # Efficient leave-one-out CV for ridge
    store_cv_results=True,
)
cv_model.fit(X, y)

Example - Ridge Regression

• Preparation
• CV
• CV Plot
• Best Parameter
• Results

ridge_predictors = [
    "flipper_length_mm",
    "bill_depth_mm",
    "bill_length_mm",
]
X_ridge = penguins[ridge_predictors]
y_ridge = penguins["body_mass_g"]

ridge_scaler = StandardScaler()
X_ridge_scaled = ridge_scaler.fit_transform(X_ridge)

ridge_mod_cv = RidgeCV(
    alphas=lambdas,
    cv=None,
    store_cv_results=True,
)
ridge_mod_cv.fit(X_ridge_scaled, y_ridge)

ridge_cv_results = pd.DataFrame(
    {
        "lambda": lambdas,
        "mean_cv_error": ridge_mod_cv.cv_results_.mean(axis=0),
    }
)
ridge_best_result = ridge_cv_results.loc[
    [ridge_cv_results["mean_cv_error"].idxmin()]
]

(

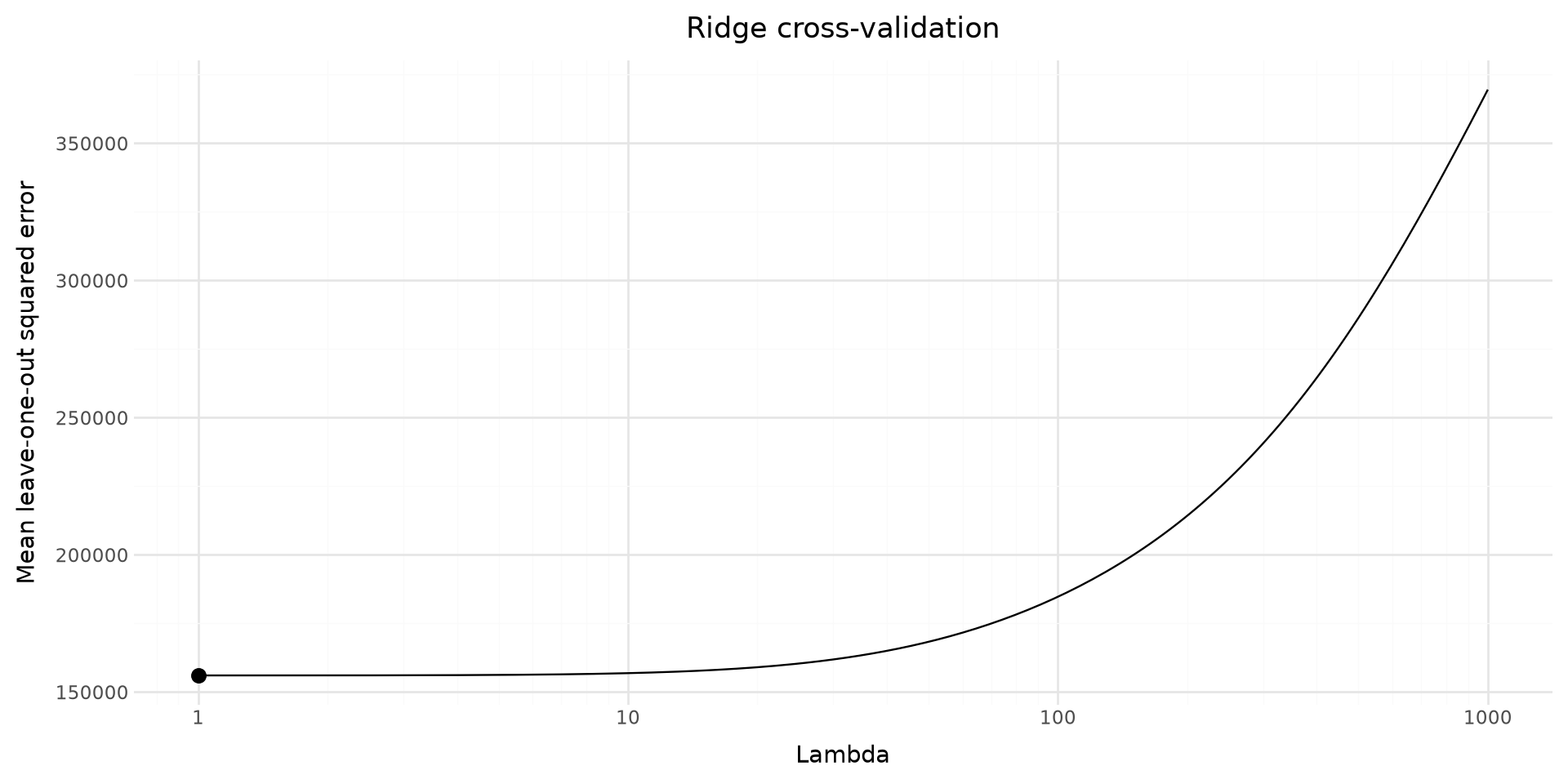

    ggplot(ridge_cv_results, aes(x="lambda", y="mean_cv_error"))
    + geom_line()
    + geom_point(data=ridge_best_result, size=3)
    + scale_x_log10()
    + labs(
        x="Lambda",
        y="Mean leave-one-out squared error",
        title="Ridge cross-validation",
    )
    + theme_minimal()
)

ridge_mod_cv.alpha_

1.0

ridge_mod = Ridge(alpha=ridge_mod_cv.alpha_)
ridge_mod.fit(X_ridge_scaled, y_ridge)

ridge_coefficients = ridge_mod.coef_ / ridge_scaler.scale_
ridge_intercept = ridge_mod.intercept_ - np.sum(
    ridge_mod.coef_ * ridge_scaler.mean_ / ridge_scaler.scale_
)

pd.Series(
    [ridge_intercept, *ridge_coefficients],
    index=["Intercept", *ridge_predictors],
    name="coefficient",
)

Intercept           -6366.029487
flipper_length_mm      50.362104
bill_depth_mm          16.489200
bill_length_mm          3.840000
Name: coefficient, dtype: float64

Example - LASSO

• Preparation
• CV
• CV Plot
• Best Parameter
• Results

lasso_predictors = [
    "flipper_length_mm",
    "bill_depth_mm",
    "bill_length_mm",
]
X_lasso = penguins[lasso_predictors]
y_lasso = penguins["body_mass_g"]

lasso_scaler = StandardScaler()
X_lasso_scaled = lasso_scaler.fit_transform(X_lasso)

lasso_mod_cv = LassoCV(
    alphas=lambdas,
    cv=loo,
    max_iter=100_000,
    n_jobs=-1,
)
lasso_mod_cv.fit(X_lasso_scaled, y_lasso)

lasso_cv_results = pd.DataFrame(
    {
        "lambda": lasso_mod_cv.alphas_,
        "mean_cv_error": lasso_mod_cv.mse_path_.mean(axis=1),
    }
)
lasso_best_result = lasso_cv_results.loc[
    [lasso_cv_results["mean_cv_error"].idxmin()]
]

(

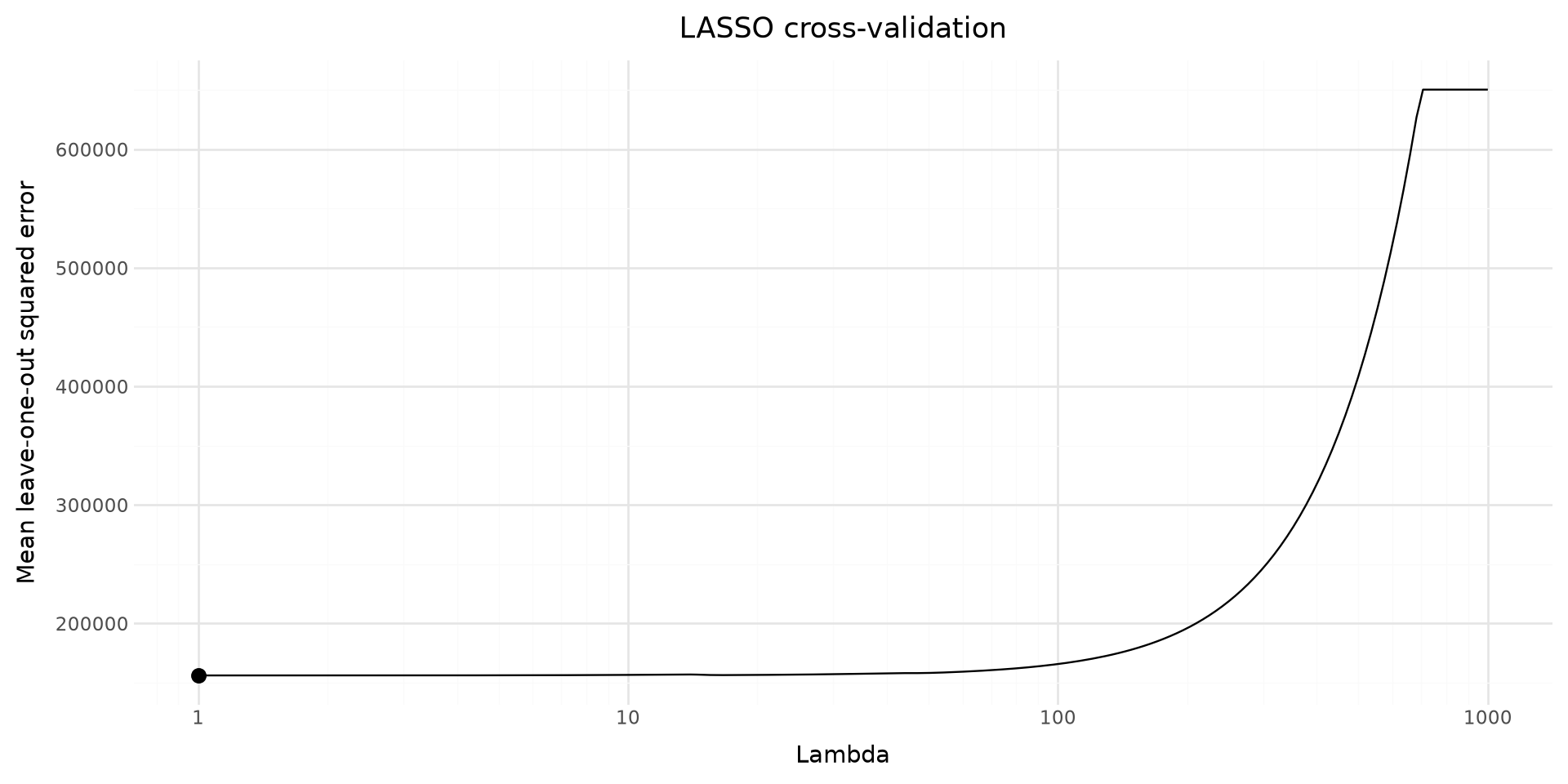

    ggplot(lasso_cv_results, aes(x="lambda", y="mean_cv_error"))
    + geom_line()
    + geom_point(data=lasso_best_result, size=3)
    + scale_x_log10()
    + labs(
        x="Lambda",
        y="Mean leave-one-out squared error",
        title="LASSO cross-validation",
    )
    + theme_minimal()
)

lasso_mod_cv.alpha_

np.float64(1.0)

lasso_mod = Lasso(
    alpha=lasso_mod_cv.alpha_,
    max_iter=100_000,
)
lasso_mod.fit(X_lasso_scaled, y_lasso)

lasso_coefficients = lasso_mod.coef_ / lasso_scaler.scale_
lasso_intercept = lasso_mod.intercept_ - np.sum(
    lasso_mod.coef_ * lasso_scaler.mean_ / lasso_scaler.scale_
)

pd.Series(
    [lasso_intercept, *lasso_coefficients],
    index=["Intercept", *lasso_predictors],
    name="coefficient",
)

Intercept           -6390.063710
flipper_length_mm      50.588578
bill_depth_mm          16.621328
bill_length_mm          3.300194
Name: coefficient, dtype: float64

Try with mtcars

Complete a LASSO approach using mtcars to predict mpg from the remaining variables.

Bootstrap Methods

Bootstrap Methods

Bootstrapping methods are used when we cannot theoretically compute the standard errors. Bootstrap methods are computationally intensive but will compute accurate standard errors.

When all else fails, a bootstrap approach will compute accurate standard errors.

Bootstrap Algorithm

1. Draw a sample \(X*\) of size \(n\) with replacement from the original data \(X\).
   1. \(n\) is the size of the data
2. Compute the bootstrap replicate statistic \(T* = g(X*)\), where \(g(\cdot)\) is the function that computes the statistic of interest.
3. Repeat steps 1-2 \(B\) times to obtain \(B\) bootstrap replicates \({T*_1, T*_2, ..., T*_B}\).
4. The computed statistics from \(B\) samples are the empirical bootstrap distribution of the statistic, \(g(X)\).
5. Calculate the bootstrap standard error of the statistic, \(se_b(g(X))\), as the standard deviation of the bootstrap replicates.
6. Calculate the bootstrap confidence interval for the statistic, \(CI(g(X))\), with the \(\alpha\) and \((1-\alpha)%\) percentiles of the bootstrap replicates, where \(\alpha\) is the desired level of significance.

Examples

Fitting the following model:

bootstrap_predictors = [
    "flipper_length_mm",
    "bill_length_mm",
    "bill_depth_mm",
]
X_bootstrap = sm.add_constant(
    penguins[bootstrap_predictors],
    has_constant="add",
)
y_bootstrap = penguins["body_mass_g"]

bootstrap_model = sm.OLS(y_bootstrap, X_bootstrap).fit()
bootstrap_model.params

const               -6445.476043
flipper_length_mm      50.762132
bill_length_mm          3.292863
bill_depth_mm          17.836391
dtype: float64

Obtain the Bootstrap-based Standard Errors for the regression coefficients. Use \(B=1000\) bootstrap samples.

Examples: Solution

B = 1000
rng = np.random.default_rng(12345)
bootstrap_estimates = []

for _ in range(B):
    sample_positions = rng.integers(
        low=0,
        high=len(penguins),
        size=len(penguins),
    )
    bootstrap_sample = penguins.iloc[sample_positions]

    X_sample = sm.add_constant(
        bootstrap_sample[bootstrap_predictors],
        has_constant="add",
    )
    y_sample = bootstrap_sample["body_mass_g"]

    fitted_sample = sm.OLS(y_sample, X_sample).fit()
    bootstrap_estimates.append(fitted_sample.params)

bootstrap_estimates = pd.DataFrame(bootstrap_estimates)

bootstrap_results = pd.DataFrame(
    {
        "estimate": bootstrap_model.params,
        "bootstrap_se": bootstrap_estimates.std(ddof=1),
        "ci_lower": bootstrap_estimates.quantile(0.025),
        "ci_upper": bootstrap_estimates.quantile(0.975),
    }
)

bootstrap_results.round(3)

	estimate	bootstrap_se	ci_lower	ci_upper
const	-6445.476	534.391	-7541.213	-5470.429
flipper_length_mm	50.762	2.403	46.289	55.562
bill_length_mm	3.293	5.186	-7.158	12.954
bill_depth_mm	17.836	12.907	-6.881	43.931
